Pressure Regulator CTRL Solenoid Valve

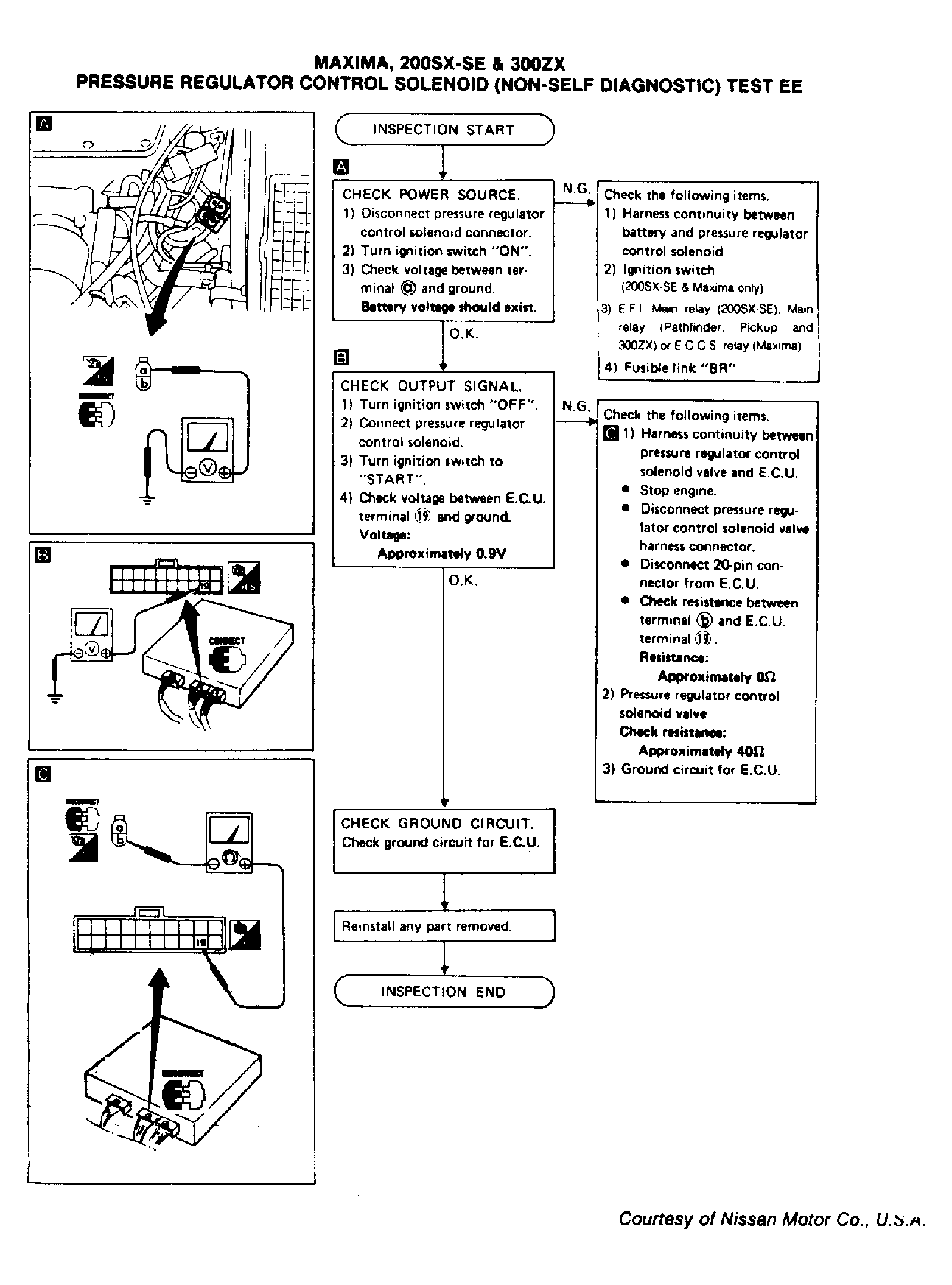

Fig 1: Test EE, Maxima, 200SX-SE & 300 ZX

G61781

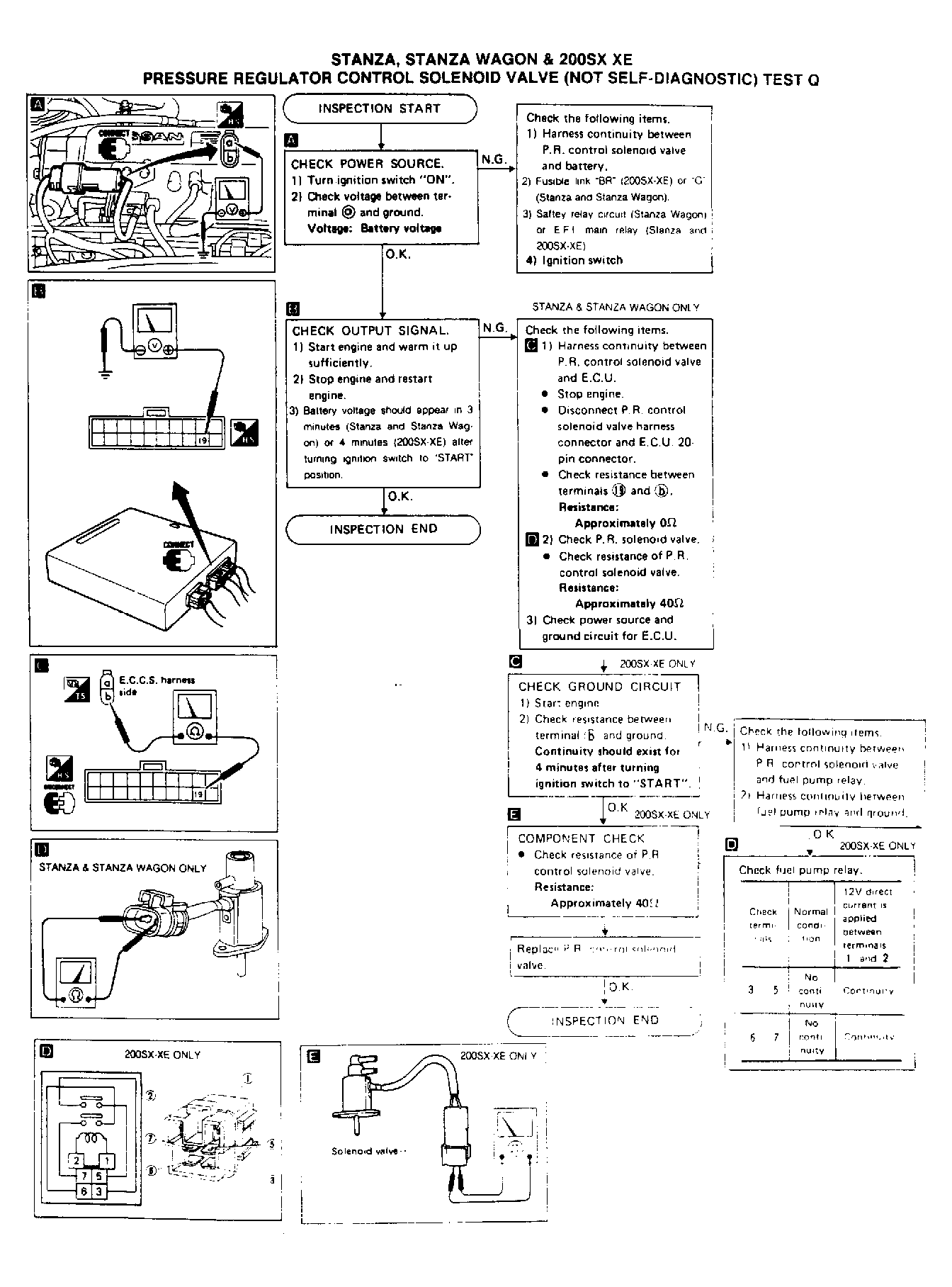

Fig 2: Test Q, Stanza, Stanza Wagon & 200SX XE

G61743
