Air Injection Valve (AIV) Control

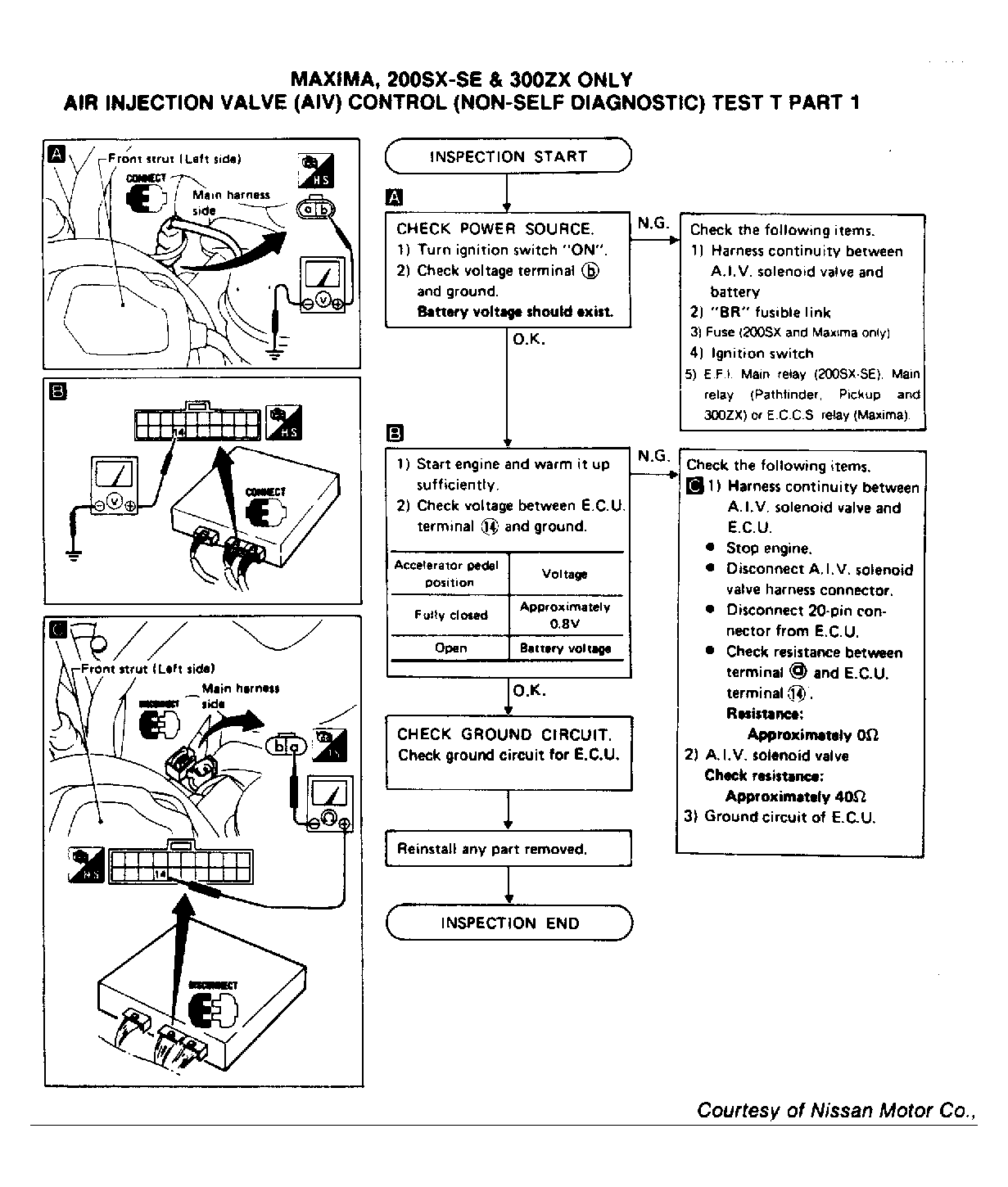

Fig 1: Test T, Maxima, 200SX-SE & 300ZX

G61755

Fig 2: Test O, Pulsar NX SE

G61731

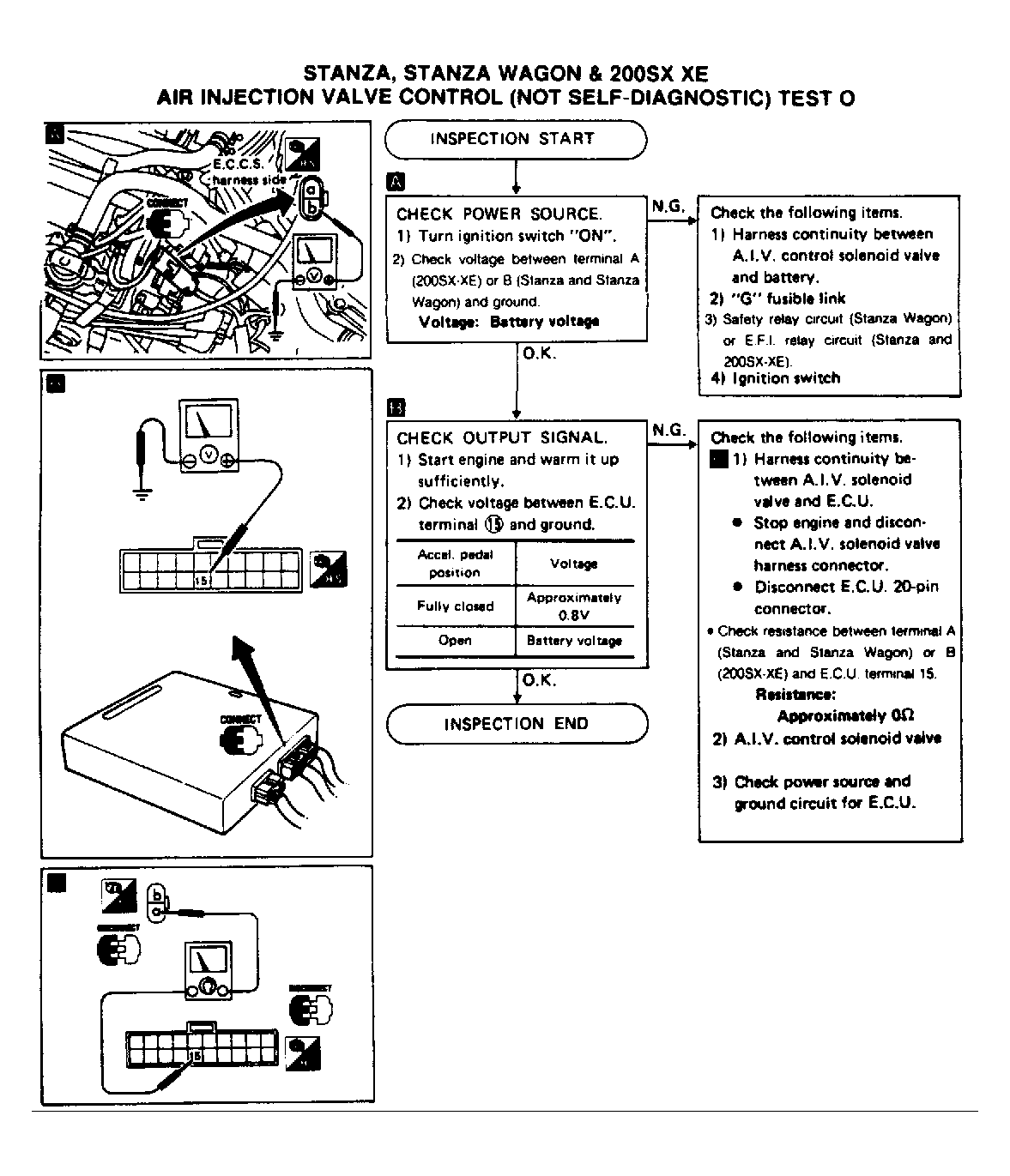

Fig 3: Test O, Stanza, Stanza Wagon & 200SX XE

G61733
