Occupant Detection System Sensor (TT-283-52-001)

Publication date: 2024-12-01
Reference number: TT-283-52-001

OCCUPANT DETECTION SYSTEM SENSOR

TECHNICAL INFORMATION TIPS

Reference Number(s): TT-283-52-001, Date of Issue: December 01, 2024

MITSUBISHI:

2023-2025 Outlander Plug-in Hybrid

SERVICE INFORMATION

The following article was published in a recent Tech Talk publication and states:

AFFECTED VEHICLES: 2023-2025 Outlander Plug-in Hybrid vehicles

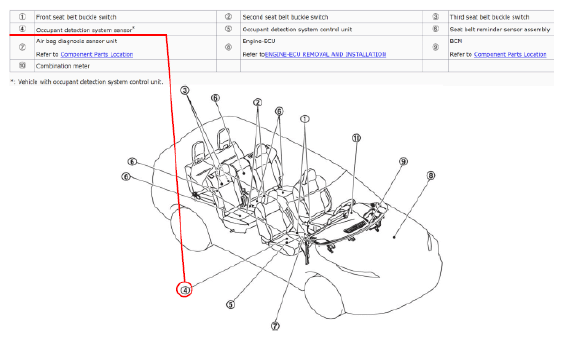

This is to remind you that when you need a new occupant detection system sensor, please order a "PAD, SEAT CUSHION", not a "COVER, SEAT CUSHION". See illustration below.

The seat belt reminder sensor is located in the same position as in previous models.

Excerpt from Owner's Manual:

Occupant Detection System Sensor

Occupant detection system sensor installed in the passenger seat cushion pad.
Occupant detection system sensor transmits the passenger seat status (occupied or empty) to occupant detection system control unit
