Description Of Structure And Operation

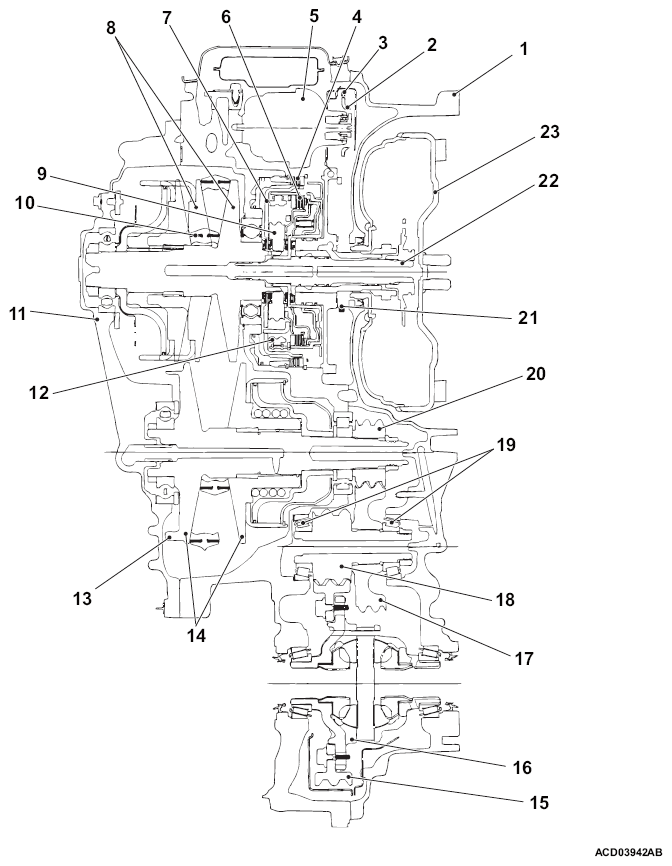

SECTIONAL VIEW
| 1 . | Converter housing |
| 2 . | Driven sprocket |
| 3 . | Chain |
| 4 . | Reverse brake |
| 5 . | Oil pump |
| 6 . | Forward clutch |
| 7 . | Planet carrier |
| 8 . | Primary pulley |
| 9 . | Sun gear |
| 10 . | Steel belt |
| 11 . | Side cover |
| 12 . | Internal gear |
| 13 . | Parking gear |
| 14 . | Secondary pulley |
| 15 . | Final gear |
| 16 . | Differential case |
| 17 . | Idler gear |
| 18 . | Reduction gear |
| 19 . | Taper roller bearing |
| 20 . | Output gear |
| 21 . | Drive sprocket |
| 22 . | Input shaft |
| 23 . | Torque converter |
