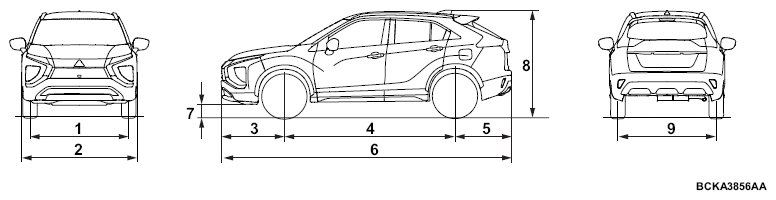

| Vehicle dimension mm (in) |
Front track |
1 |
1, 540 (60.6) |
1, 540 (60.6) |
| Overall width |
2 |
1, 805 (71.1) |
1, 805 (71.1) |
| Front overhang |
3 |
990 (39.0) |
990 (39.0) |
| Wheelbase |
4 |
2, 670 (105.1) |
2, 670 (105.1) |
| Rear overhang |
5 |
885 (34.8) |
885 (34.8) |
| Overall length |
6 |
4, 545 (179.0) |
4, 545 (179.0) |
| Ground clearance (unladen) |
7 |
215 (8.5) |
215 (8.5) |
| Overall height (unladen) |
8 |
1, 690 (66.5) |
1, 690 (66.5) |
| Rear track |
9 |
1, 540 (60.6) |
1, 540 (60.6) |
| Vehicle weight kg (lb) |
Curb weight |
Without optional parts |
1, 555 (3, 428) |
1, 575 (3, 472) |
| With optional parts |
1, 558 (3, 434) |
1, 591 (3, 507) |
| Gross vehicle weight |
2, 100 (4, 630) |
2, 100 (4, 630) |
| Gross axle weight rating-front |
1, 200 (2, 646) |
1, 200 (2, 646) |
| Gross axle weight rating-rear |
1, 160 (2, 557) |
1, 160 (2, 557) |
| Gross combination weight |
2, 737 (6, 034) |
2, 737 (6, 034) |
| Seating capacity |
5 |
5 |
| Engine |
Model code |
4B40 |
4B40 |
| Type |
DOHC MIVEC Direct fuel injection with charge air cooler, turbocharger, gasoline engine |
DOHC MIVEC Direct fuel injection with charge air cooler, turbocharger, gasoline engine |
| Total displacement cm (cu in) |
1, 499 (91.5) |
1, 499 (91.5) |
| Maximum output kW/r/min (HP/r/min) |
114/5, 500 (152/5, 500) |
114/5, 500 (152/5, 500) |
| Maximum torque Nm/r/min (ft-lb/r/min) |
250/2, 000 - 3, 500 (184/2, 000 - 3, 500) |
250/2, 000 - 3, 500 (184/2, 000 - 3, 500) |
| Fuel system |
Fuel supply system |
DFI and MFI |
DFI and MFI |
| Transaxle |
Model code |
W1CJC |
W1CJC |
| Type |
Electronic control AWD, INVECS-III CVT with sport mode |
Electronic control AWD, INVECS-III CVT with sport mode |
| Minimum turning radius m (ft) |
Body |
5.7 (18.7) |
5.7 (18.7) |
| Wheel |
5.3 (17.39) |
5.3 (17.39) |
