Removal And Installation: Notes

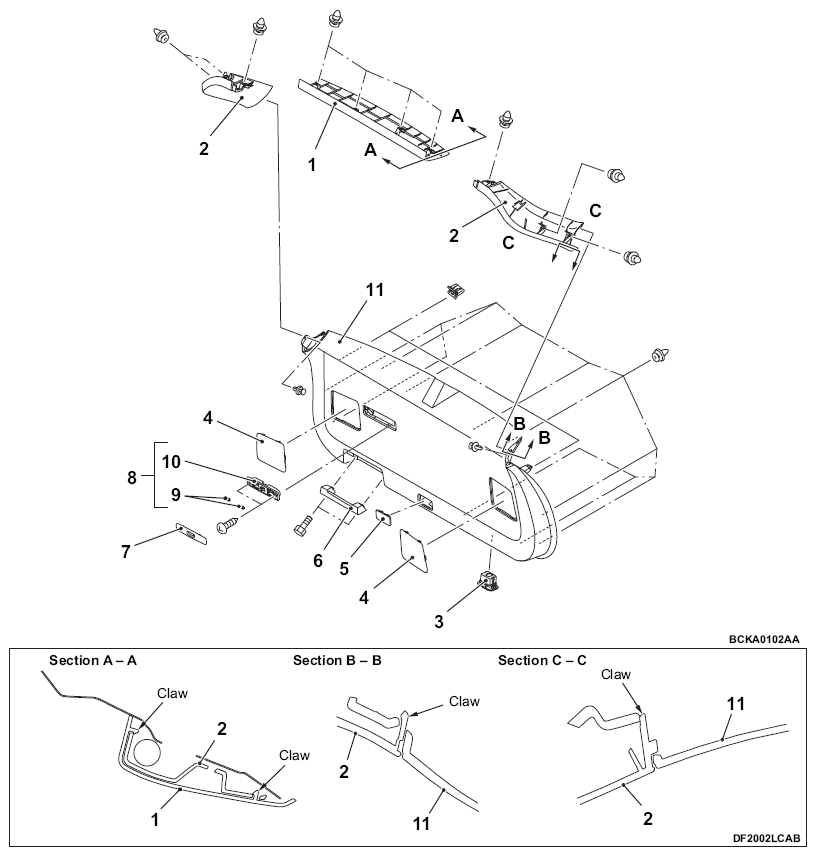

| Removal steps | ||
|---|---|---|
| <<A>> | 1. | Liftgate upper inner finisher |
| <<B>> | 2. | Liftgate side inner finisher |
| 3. | Liftgate lock switch | |
| 4. | Liftgate lower inner finisher lid | |
| 5. | Liftgate latch lid | |
| 6. | Liftgate grip | |
| 7. | Luggage light lens | |
| 8. | Luggage light assembly | |
| 9. | Bulb | |
| 10. | Luggage light | |
| <<C>> | 11. | Liftgate lower inner finisher |
Required Special Tool:
- MB990784: Ornament Remover
