Removal And Installation: Notes
Pre-removal and Post-installation Operation
- Liftgate Spoiler Assembly Removal and Installation (Refer to Liftgate Spoiler REMOVAL AND INSTALLATION ).
- Rear Combination Light (Power Liftgate Side) Removal and Installation (Refer to Rear Combination Light (Liftgate Side) REMOVAL AND INSTALLATION ).
- Liftgate Garnish Bracket (Refer to Liftgate Garnish REMOVAL AND INSTALLATION ).

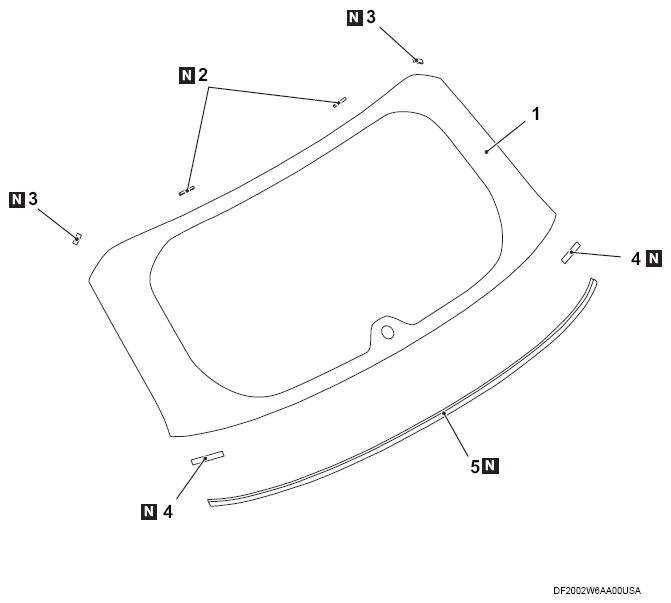

| Removal steps | |||
| <<A>> | >>B<< | 1. | Liftgate window glass assembly |
| >>A<< | 2. | Liftgate spacer | |
| >>A<< | 3. | Liftgate window fastener | |
| >>A<< | 4. | Liftgate window glass stopper | |
| >>A<< | 5. | Liftgate lower dam |
Required Special Tool:
- MB990480 Window Glass Holder
