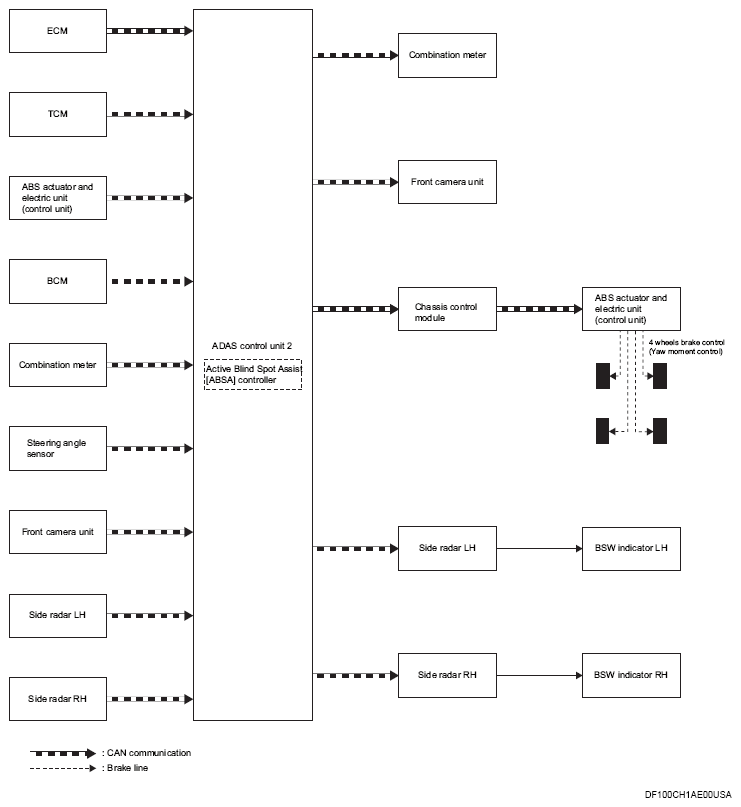

System Diagram
| Component | Description |
|---|---|
| ECM | ECM |
| TCM | TCM |
| ABS actuator and electric unit (control unit) | ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) |
| BCM | SYSTEM DESCRIPTION |
| Combination meter (FULL TFT METER) | COMBINATION METER |
| Combination meter (7 INCH INFORMATION DISPLAY) | COMBINATION METER |
| Steering angle sensor | STEERING ANGLE SENSOR |
| ADAS control unit 2 | ADAS CONTROL UNIT 2 |
| Side radar LH/RH | SIDE RADAR LH/RH |
| Front camera unit | ADAS CONTROL UNIT 2 |
| BSW indicator LH, RH | BSW INDICATOR LH/RH |
| Chassis control module | CHASSIS CONTROL MODULE |
