Removal and Installation: Notes
CAUTION:
- Do not remove front camera unit bracket and front camera cover from windshield glass.
- Front camera unit bracket and front camera cover must be replaced together with windshield glass as an assembly.
- When replacing front camera unit, perform "ADDITIONAL SERVICE WHEN REPLACING FRONT CAMERA UNIT." Refer to WORK PROCEDURE .

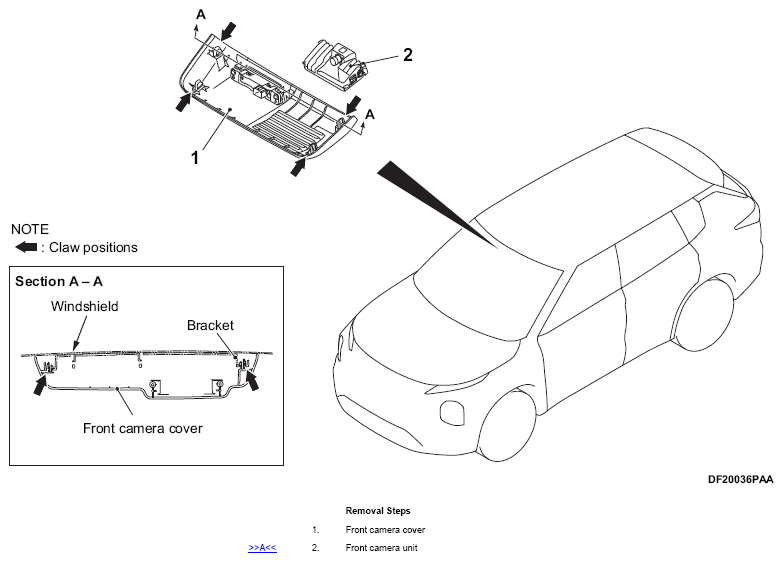

| Removal Steps | ||
| 1. | Front camera cover | |
| >>A<< | 2. | Front camera unit |
