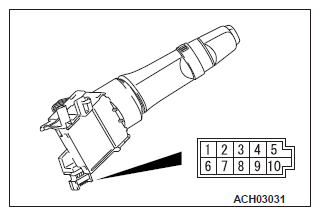

Windshield Wiper & Windshield Washer Switch Continuity Check
WARNING: This page is about a different car, the 2023 Mitsubishi Eclipse Cross. However, it is still accessible from the selected car via links, so may be relevant.
| Switch position | Terminal number | Normal condition | |
|---|---|---|---|
| OFF | 1 - 5 2 - 5 3 - 5 4 - 5 5 - 7 5 - 8 5 - 9 5 - 10 |
No continuity | |
| Windshield wiper switch | AUTO | 2 - 5 | Continuity exists (2 ohms or less) |
| LO | 4 - 5 | ||
| HI | 1 - 5 | ||
| MIST | 5 - 10 | ||
| Windshield washer switch | 3 - 5 | Continuity exists (2 ohms or less) | |
| Rear washer switch | 5 - 8 | Continuity exists (2 ohms or less) | |
| Rear wiper switch | 5 - 9 | Continuity exists (2 ohms or less) | |
| Windshield rain sensitive wiper function adjusting knob | 5 - 6 | Operating the adjusting knob changes the resistance. | |
