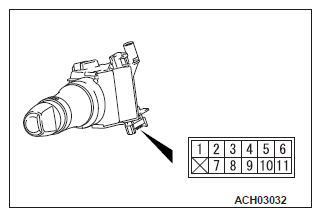

Turn Signal Light & Lighting Switch Continuity Check
WARNING: This page is about a different car, the 2023 Mitsubishi Eclipse Cross. However, it is still accessible from the selected car via links, so may be relevant.
| Switch position |
Terminal number |
Normal condition |
| OFF or AUTO position |
1 - 5 |
No continuity |
| 2 - 5 |
| 3 - 5 |
| 4 - 5 |
| 5 - 6 |
| 5 - 7 |
| 5 - 8 |
| 5 - 9 |
| 5 - 10 |
| 5 - 10 |
Continuity exists (2 ohms or less) |
| Turn-signal light RH switch |
3 - 5 |
Continuity exists (2 ohms or less) |
| Turn-signal light LH switch |
4 - 5 |
Continuity exists (2 ohms or less) |
| Dimmer switch |
1 - 5
2 - 5 |
Continuity exists (2 ohms or less) |
| Passing switch |
1 - 5 |
Continuity exists (2 ohms or less) |
| Fog light switch |
ON |
5 - 11 |
Decreases by 224 Ω or more from the value measured at the neutral position |
| NEUTRAL |
303 - 736 Ω |
| OFF |
Increases by 223 Ω or more from the value measured at the neutral position |
| Taillight switch |
5 - 8 |
Continuity exists (2 ohms or less) |
| Headlight switch |
5 - 7 |
Continuity exists (2 ohms or less) |
| Auto light switch |
5 - 9 |
Continuity exists (2 ohms or less) |
| Automatic high beam switch |
5 - 6 |
Continuity exists (2 ohms or less) |
