Liftgate Latch Switch Check
WARNING: This page is about a different car, the 2023 Mitsubishi Eclipse Cross. However, it is still accessible from the selected car via links, so may be relevant.

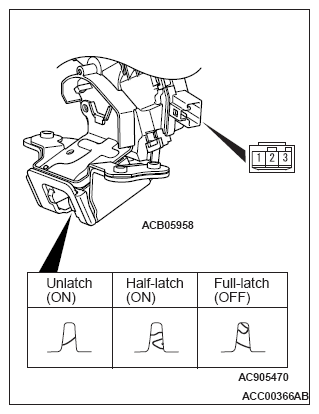

| Claw position |
Terminal number |
Normal value |
| Unlatch (ON)/Half-latch (ON) |
1 - 2 |
The resistance should be 2 ohms or less. |
| Full-latch (OFF) |
1 - 2 |
No continuity |
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
