Exploded View

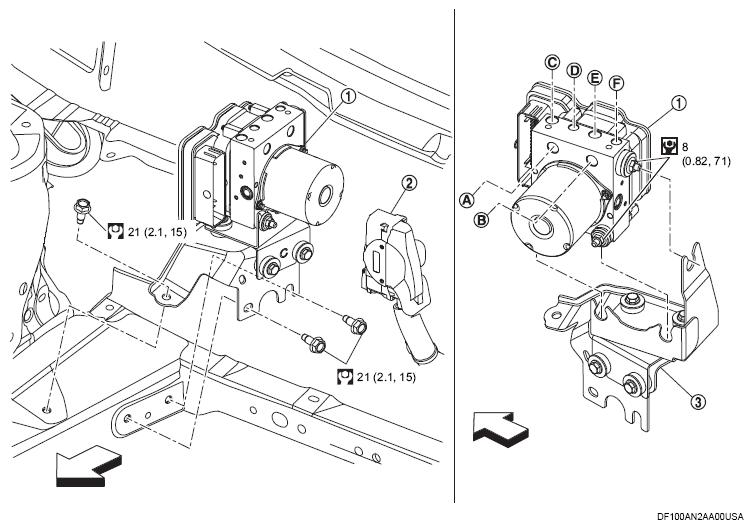

Fig 1: Removing/Installing ABS Actuator And Electric Unit (Control Unit) Components Location With Torque Specification
| (1) | ABS actuator and electric unit (control unit) |
| (2) | ABS actuator and electric unit (control unit) harness connector |
| (3) | Bracket |
| (A) | To master cylinder secondary side |
| (B) | To master cylinder primary side |
| (C) | To rear RH caliper |
| (D) | To front LH caliper |
| (E) | To front RH caliper |
| (F) | To rear LH caliper |
| Vehicle front | |
| Nm (kg-m, ft-lb) | |
| Nm (kg-m, in-lb) |
