Power Distribution System

WIRE	COLOR CODE
W:	WHITE
Y:	YELLOW
R:	RED
P:	PINK
B:	BLACK
L:	BLUE
G:	GREEN
V:	VIOLET
GR:	GRAY
BE:	BEIGE
BR:	BROWN
SB:	SKY BLUE
LG:	LIGHT GREEN
L-W:	BLUE-WHITE
W-R:	WHITE-RED
G-W:	GREEN-WHITE
Y-B:	YELLOW-BLACK
R-W:	RED-WHITE
B-R:	BLACK-RED
B-W:	BLACK-WHITE
LA-Y:	LAVENDER-YELLOW
LA-L:	LAVENDER-BLUE
LA-R:	LAVENDER-RED
LA-W:	LAVENDER-WHITE
LA-G:	LAVENDER-GREEN
LA-B:	LAVENDER-BLACK
LA-V:	LAVENDER-VIOLET
LA-P:	LAVENDER-PINK
LA-SB:	LAVENDER-SKY BLUE
LA-BR:	LAVENDER-BROWN
LA-BE:	LAVENDER-BEIGE
LA-LG:	LAVENDER-LIGHT GREEN
LA-GR:	LAVENDER-GRAY

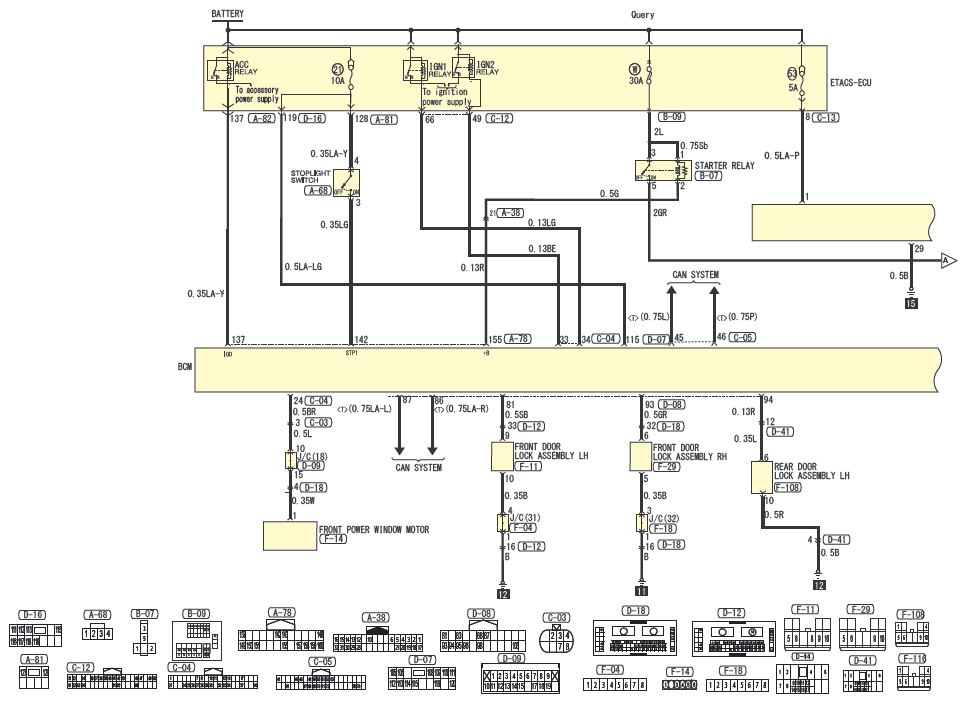

Fig 1: Power Distribution System Circuit Diagram (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

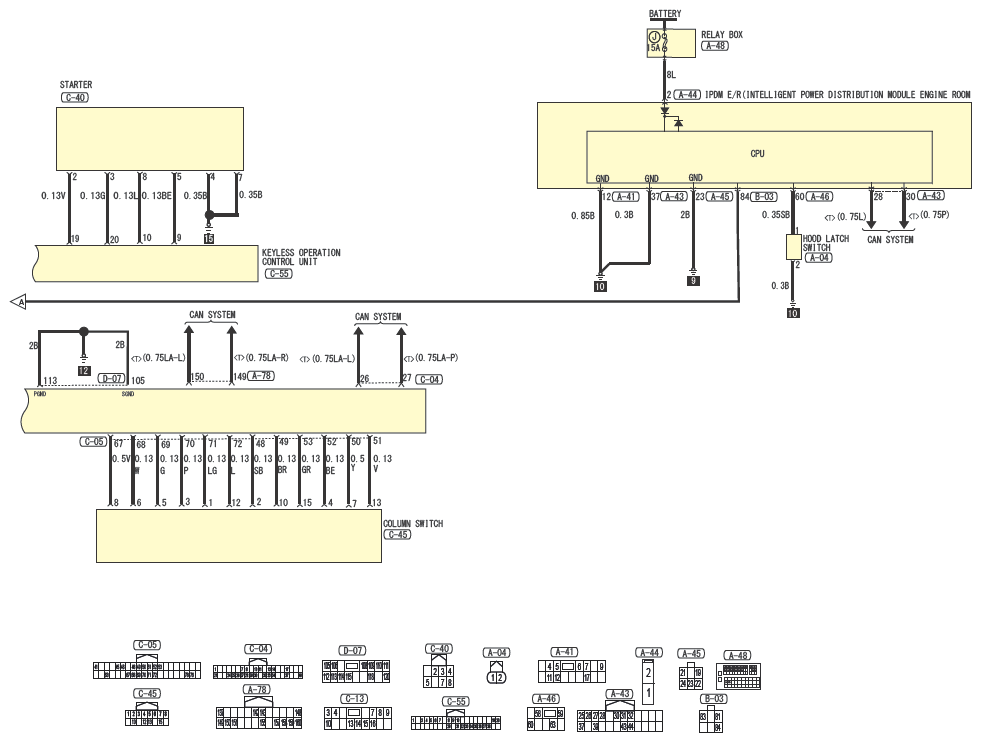

Fig 2: Power Distribution System Circuit Diagram (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Connector No.	A-04
Connector Name	HOOD LATCH SWITCH
Connector Type	RH02FB
Connector Color	Black

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	SB	1
2	B	1

Connector No.	A-38
Connector Name	CONTROL WIRING HARNESS AND FRONT WIRING HARNESS COMBINATION
Connector Type	TH32MWNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	GR	TO FLOOR HARNESS
2	GR	TO FLOOR HARNESS
3	GR	TO FLOOR HARNESS
4	BR	TO FLOOR HARNESS
5	R	TO FLOOR HARNESS
6	LG	TO FLOOR HARNESS
10	G	TO FLOOR HARNESS [Color of wire varies depending on production]
10	V	TO FLOOR HARNESS [Color of wire varies depending on production]
12	GR	TO FLOOR HARNESS
13	V	TO FLOOR HARNESS
14	Y	TO FLOOR HARNESS
15	L	TO FLOOR HARNESS
16	GR	TO FLOOR HARNESS
17	R	TO FLOOR HARNESS
18	R	TO FLOOR HARNESS
19	R	TO FLOOR HARNESS
20	P	TO FLOOR HARNESS
21	R	TO FLOOR HARNESS
28	R	TO FLOOR HARNESS
29	BR	TO FLOOR HARNESS
30	GR	TO FLOOR HARNESS
31	R	TO FLOOR HARNESS
32	P	TO FLOOR HARNESS

Connector No.	A-41
Connector Name	IPDM E/R(INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Connector Type	NS16FBRCS
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
4	R	1
5	Y	1
6	SB	1
7	BR	1
9	L	1
11	BR	1
12	B	1
17	W	1

Connector No.	A-43
Connector Name	IPDM E/R(INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM
Connector Type	TH24FWNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
25	LG	1
26	SB	1
27	Y	1
28	P	1
30	L	1
31	G	1
32	GR	1
37	B	1
39	BR	1
43	G	1
44	R	1

Connector No.	A-44
Connector Name	IPDM E/R(INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Connector Type	L02FBMC
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	W	1
2	L	1

Connector No.	A-45
Connector Name	IPDM E/R(INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM
Connector Type	RENAULT 243405408R
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
19	V	1
21	LG	1
22	Y	1
23	B	1
24	W	1

Connector No.	A-46
Connector Name	IPDM E/R(INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM
Connector Type	NS08FBRCS
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
58	L	1
59	P	1
60	SB	1
63	B	1 [Color of wire varies depending on production]
63	GR	1 [Color of wire varies depending on production]
63	L	1 [Color of wire varies depending on production]

Connector No.	A-48
Connector Name	RELAY BOX
Connector Type	DH20F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
95	LG	1
96	Y	1
97	-	1
98	-	1
99	-	1
100	W	1
101	L	1
102	SB	1
103	R	1
104	LG	1
105	L	1
106	G	1

Connector No.	A-68
Connector Name	STOPLIGHT SWITCH
Connector Type	TH04FGYNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	P	1
2	GR	1
3	LG	1
4	V	1

Connector No.	A-78
Connector Name	BCM (BODY CONTROL MODULE)
Connector Type	TH24FBNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
137	LA-Y	1
142	LG	1
143	W	1
148	G	1
149	LA-R	1
150	LA-L	1
151	BR	1
155	R	1
157	V	1
158	L	1
159	BE	1
160	P	1

Connector No.	A-81
Connector Name	ETACS-ECU
Connector Type	NS06FWCS
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
127	W	1
128	V	1

Connector No.	A-82
Connector Name	ETACS-ECU
Connector Type	TH12FWNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
137	LA-Y	1
139	L	1
140	BE	1
141	LA-SB	1
142	BR	1 [Color of wire varies depending on production]
142	LG	1 [Color of wire varies depending on production]

Connector No.	B-03
Connector Name	IPDM E/R(INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Connector Type	YLA06FGY
Connector Color	Gray

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
81	G	-
83	L	-
84	GR	-

Connector No.	B-07
Connector Name	STARTER RELAY
Connector Type	24382_6RA0A
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	SB	-
2	G	-
3	L	-
5	GR	-

Connector No.	B-09
Connector Name	RELAY BOX
Connector Type	24381_6RA0A
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
116	W	-
117	V	-
118	LG	-
119	P	-
V	BR	-
W	L	-
X	L	-
Y	R	-

Connector No.	C-03
Connector Name	FLOOR WIRING HARNESS AND INSTRUMENT PANEL WIRING HARNESS COMBINATION
Connector Type	RS08FB
Connector Color	Black

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
2	LA-LG	TO FLOOR HARNESS
3	BR	TO FLOOR HARNESS
4	V	TO FLOOR HARNESS
7	W	TO FLOOR HARNESS
8	SB	TO FLOOR HARNESS

Connector No.	C-04
Connector Name	BCM (BODY CONTROL MODULE)
Connector Type	TH40FGYNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	LA-GR	1
7	LA-V	1
8	G	1
10	Y	1
11	V	1
13	LA-Y	1
14	W	1
17	W	1
21	LA-LG	1
24	BR	1
25	BE	1 [Color of wire varies depending on production]
25	Y	1 [Color of wire varies depending on production]
26	LA-L	1
27	LA-P	1
28	R	1
29	BR	1
30	Y	1
32	GR	1
33	BE	1
34	LG	1
37	Y	1
40	LA-BR	1

Connector No.	C-05
Connector Name	BCM (BODY CONTROL MODULE)
Connector Type	TH40FBNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
41	B	1
45	L	1
46	P	1
48	SB	1
49	BR	1
50	Y	1
51	V	1
52	BE	1
53	GR	1
63	LA-SB	1
67	V	1
68	W	1
69	G	1
70	P	1
71	LG	1
72	L	1
78	G	1
79	V	1

Connector No.	C-12
Connector Name	ETACS-ECU
Connector Type	TH40FWNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
31	LA-G	1
32	G	1
34	LA-BR	1
36	LA-G	1
37	LA-L	1
38	R	1
39	LA-Y	1
40	Y	1
41	LA-BR	1
42	GR	1
43	LG	1
46	LA-SB	1
47	Y	1
49	BE	1
50	GR	1
51	LA-V	1
52	LA-GR	1
53	G	1
54	LA-P	1
61	LA-GR	1
62	LA-P	1
66	LG	1

Connector No.	C-13
Connector Name	ETACS-ECU
Connector Type	NS16FWCS
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
3	L	1
4	LG	1
7	L	1
8	LA-P	1
9	LA-SB	1
10	R	1
13	GR	1
14	Y	1
15	G	1
16	G	1

Connector No.	C-40
Connector Name	STARTER
Connector Type	TH08FGYNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
2	V	1
3	G	1
4	B	1
5	BE	1
7	B	1
8	L	1

Connector No.	C-45
Connector Name	COLUMN SWITCH
Connector Type	TH16FGYNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	LG	1
2	SB	1
3	P	1
4	BE	1
5	G	1
6	W	1
7	Y	1
8	V	1
10	BR	1
12	L	1
13	V	1
15	GR	1

Connector No.	C-55
Connector Name	KEYLESS OPERATION CONTROL UNIT
Connector Type	TH40FBNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	LA-P	1
3	LA-G	1
4	LA-LG	1
5	P	1
6	LA-L	1
7	LA-P	1
9	BE	1
10	L	1
11	P	1
19	V	1
20	G	1
29	B	1
33	LA-P	1
34	LA-Y	1
35	LA-V	1
36	LA-SB	1
37	LA-BR	1
38	LA-G	1

Connector No.	D-07
Connector Name	BCM (BODY CONTROL MODULE)
Connector Type	NS16FGYCSCPA
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
105	B	1
106	LA-Y	1
108	LA-L	1
109	LA-Y	1
110	LA-G	1
111	LA-P	1
112	LA-L	1
113	B	1
114	LG	1
115	LA-LG	1
118	V	1
120	LA-GR	1

Connector No.	D-08
Connector Name	BCM (BODY CONTROL MODULE)
Connector Type	TH24FGYNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
81	SB	1
83	LA-GR	1
86	LA-R	1
87	LA-L	1
93	GR	1
94	R	1
96	BE	1
98	Y	1
103	LA-G	1

Connector No.	D-09
Connector Name	J/C(18)
Connector Type	DH22F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	L	1
2	LA-L	1
3	LA-L	1
4	LA-V	1
5	V	1
6	LA-V	1
7	LA-SB	1
8	SB	1
9	LA-SB	1
10	L	1
11	LA-B	1
12	LA-L	1
13	W	1
14	W	1
15	W	1
17	R	1
18	LA-R	1
19	LA-R	1

Connector No.	D-12
Connector Name	FR DOOR WIRING HARNESS AND FLOOR HARNESS COMBINATION
Connector Type	DH60F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	BR	TO IPNL HARNESS
2	LA-L	TO IPNL HARNESS
3	L	TO IPNL HARNESS
4	G	TO IPNL HARNESS
5	L	TO IPNL HARNESS
6	W	TO IPNL HARNESS
7	GR	TO IPNL HARNESS
8	BE	TO IPNL HARNESS
9	P	TO IPNL HARNESS
12	B	TO IPNL HARNESS
13	LA-Y	TO IPNL HARNESS
14	BR	TO IPNL HARNESS
15	LA-LG	TO IPNL HARNESS
16	LA-Y	TO IPNL HARNESS
17	LA-P	TO IPNL HARNESS
18	P	TO IPNL HARNESS
19	Y	TO IPNL HARNESS
20	GR	TO IPNL HARNESS
21	SB	TO IPNL HARNESS
22	BR	TO IPNL HARNESS
26	LA-L	TO IPNL HARNESS
27	LA-G	TO IPNL HARNESS
28	GR	TO IPNL HARNESS
29	V	TO IPNL HARNESS
30	LG	TO IPNL HARNESS
31	BE	TO IPNL HARNESS
32	BR	TO IPNL HARNESS
33	SB	TO IPNL HARNESS
34	LA-LG	TO IPNL HARNESS
36	GR	TO IPNL HARNESS
37	G	TO IPNL HARNESS
38	Y	TO IPNL HARNESS
40	B	TO IPNL HARNESS
41	SB	TO IPNL HARNESS
47	LA-G	TO IPNL HARNESS
48	V	TO IPNL HARNESS
51	V	TO IPNL HARNESS
52	B	TO IPNL HARNESS
54	W	TO IPNL HARNESS [With 6 speaker]
54	G	TO IPNL HARNESS [With BOSE speaker]
55	G	TO IPNL HARNESS [With 6 speaker]
55	R	TO IPNL HARNESS [With BOSE speaker]
56	LA-W	TO IPNL HARNESS
59	TBD	TO IPNL HARNESS

Connector No.	D-16
Connector Name	ETACS-ECU
Connector Type	NS12FWCS
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
111	L	1
112	GR	1
113	R	1
115	V	1
116	LA-GR	1
117	LA-P	1
118	LA-Y	1
119	LA-LG	1

Connector No.	D-18
Connector Name	FLOOR WIRING HARNESS AND FRONT DOOR WIRING HARNESS (passenger's side) COMBINATION
Connector Type	DH60F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	L	TO IPNL HARNESS
2	G	TO IPNL HARNESS
3	LG	TO IPNL HARNESS
4	W	TO IPNL HARNESS
5	BR	TO IPNL HARNESS
11	B	TO IPNL HARNESS
12	BR	TO IPNL HARNESS
13	LA-Y	TO IPNL HARNESS
14	G	TO IPNL HARNESS
15	LA-LG	TO IPNL HARNESS
16	LA-SB	TO IPNL HARNESS
25	LA-B	TO IPNL HARNESS
26	LA-L	TO IPNL HARNESS
27	LA-G	TO IPNL HARNESS
28	R	TO IPNL HARNESS
29	V	TO IPNL HARNESS
30	LG	TO IPNL HARNESS
31	BE	TO IPNL HARNESS
32	GR	TO IPNL HARNESS
33	P	TO IPNL HARNESS
37	G	TO IPNL HARNESS [Color of wire varies depending on production]
37	R	TO IPNL HARNESS [Color of wire varies depending on production]
38	SB	TO IPNL HARNESS [Color of wire varies depending on production]
38	Y	TO IPNL HARNESS [Color of wire varies depending on production]
40	B	TO IPNL HARNESS
41	SB	TO IPNL HARNESS
47	L	TO IPNL HARNESS
48	LA-L	TO IPNL HARNESS
51	V	TO IPNL HARNESS
52	B	TO IPNL HARNESS
54	G	-[With BOSE speaker]
54	W	TO IPNL HARNESS [With 6 speaker]
55	G	TO IPNL HARNESS [With 6 speaker]
55	R	TO IPNL HARNESS [With BOSE speaker]
56	R	TO IPNL HARNESS

Connector No.	D-41
Connector Name	DOOR HARNESS AND REAR DOOR WIRING HARNESS COMBINATION
Connector Type	NH10FWCS10
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	V	TO IPNL HARNESS
2	Y	TO IPNL HARNESS [With 6 speaker]
2	B	TO IPNL HARNESS [With BOSE speaker]
4	B	TO IPNL HARNESS
6	BR	TO IPNL HARNESS
7	G	TO IPNL HARNESS
8	LG	TO IPNL HARNESS [With 6 speaker]
8	W	TO IPNL HARNESS [With BOSE speaker]
9	SB	TO IPNL HARNESS
10	BE	TO IPNL HARNESS
11	W	TO IPNL HARNESS
12	R	TO IPNL HARNESS
14	V	TO IPNL HARNESS
15	P	TO IPNL HARNESS
16	L	TO IPNL HARNESS
17	LG	TO IPNL HARNESS

Connector No.	F-04
Connector Name	J/C(31)
Connector Type	DH8F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	B	GND
2	B	SW-
3	B	GND
4	B	GND
5	B	GND
6	B	GND
7	B	GND
8	B	GND

Connector No.	F-11
Connector Name	FRONT DOOR LOCK ASSEMBLY LH
Connector Type	DH0910F2
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
5	G	DRUL
6	V	LHL
8	Y	IKDS
9	SB	DRSW
10	B	GND

Connector No.	F-14
Connector Name	FRONT POWER WINDOW MOTOR
Connector Type	DHW6F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	W	LIN
3	W	PWR
4	B	GND
5	R	UP
6	Y	DOWN

Connector No.	F-18
Connector Name	J/C(32)
Connector Type	DH8F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	B	GND
2	B	G
3	SB	GND
4	R	GND
5	B	GND
6	V	GND
7	B	GND
8	B	GND

Connector No.	F-29
Connector Name	FRONT DOOR LOCK ASSEMBLY RH
Connector Type	DH0910F2
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
5	SB	GND
6	GR	SW
9	Y	UNLC
10	V	LOCK

Connector No.	F-108
Connector Name	REAR DOOR LOCK ASSEMBLY LH
Connector Type	DH0910F2
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
4	BR	RRSL
5	V	GND
6	G	DSW
9	L	DSW
10	R	GND
