BCM (Body Control Module)

WIRE	COLOR CODE
W:	WHITE
Y:	YELLOW
R:	RED
P:	PINK
B:	BLACK
L:	BLUE
G:	GREEN
V:	VIOLET
GR:	GRAY
BE:	BEIGE
BR:	BROWN
SB:	SKY BLUE
LG:	LIGHT GREEN
L-W:	BLUE-WHITE
W-R:	WHITE-RED
G-W:	GREEN-WHITE
Y-B:	YELLOW-BLACK
R-W:	RED-WHITE
B-R:	BLACK-RED
B-W:	BLACK-WHITE
LA-Y:	LAVENDER-YELLOW
LA-L:	LAVENDER-BLUE
LA-R:	LAVENDER-RED
LA-W:	LAVENDER-WHITE
LA-G:	LAVENDER-GREEN
LA-B:	LAVENDER-BLACK
LA-V:	LAVENDER-VIOLET
LA-P:	LAVENDER-PINK
LA-SB:	LAVENDER-SKY BLUE
LA-BR:	LAVENDER-BROWN
LA-BE:	LAVENDER-BEIGE
LA-LG:	LAVENDER-LIGHT GREEN
LA-GR:	LAVENDER-GRAY

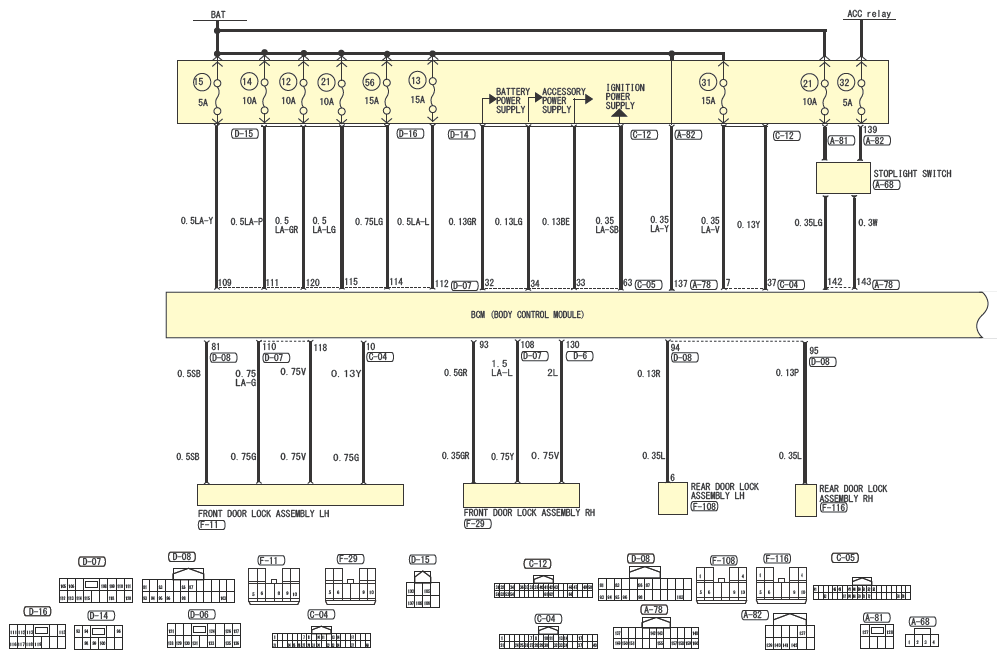

Fig 1: Body Control Module Circuit Diagram (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

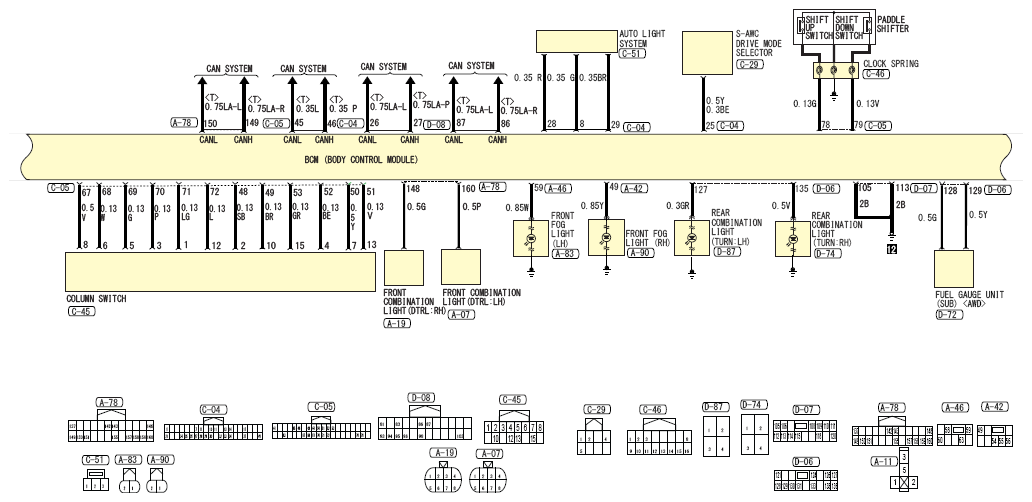

Fig 2: Body Control Module Circuit Diagram (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

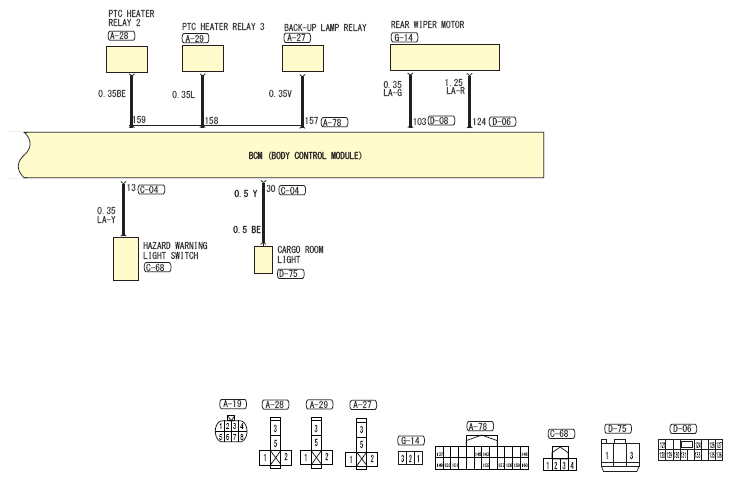

Fig 3: Body Control Module Circuit Diagram (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Connector No.	A-07
Connector Name	FRONT COMBINATION LIGHT(DTRL:LH)
Connector Type	RS08FB
Connector Color	Black

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	SB	1
2	R	1
3	B	1
4	P	1
5	BE	1
6	Y	1
7	GR	1
8	W	1

Connector No.	A-19
Connector Name	FRONT COMBINATION LIGHT(DTRL:RH)
Connector Type	RS08FB
Connector Color	Black

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	P	1
2	BR	1
3	B	1
4	G	1
5	R	1
6	Y	1
7	SB	1
8	GR	1

Connector No.	A-27
Connector Name	BACK-UP LAMP RELAY
Connector Type	DH10F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	V	1
2	LG	1
3	GR	1
5	L	1

Connector No.	A-28
Connector Name	PTC HEATER RELAY 2
Connector Type	DH10F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	BE	1
2	SB	1
3	P	1
5	G	1

Connector No.	A-29
Connector Name	PTC HEATER RELAY 3
Connector Type	DH10F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	L	1
2	W	1
3	R	1
5	Y	1

Connector No.	A-42
Connector Name	IPDM E/R(INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM
Connector Type	NS08FBRCS
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
49	G	1
54	P	1
55	B	1
56	V	1

Connector No.	A-46
Connector Name	IPDM E/R(INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM
Connector Type	NS08FBRCS
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
58	L	1
59	P	1
60	SB	1
63	B	1 [Color of wire varies depending on production]
63	GR	1 [Color of wire varies depending on production]
63	L	1 [Color of wire varies depending on production]

Connector No.	A-68
Connector Name	STOPLIGHT SWITCH
Connector Type	TH04FGYNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	P	1
2	GR	1
3	LG	1
4	V	1

Connector No.	A-78
Connector Name	BCM (BODY CONTROL MODULE)
Connector Type	TH24FBNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
137	LA-Y	1
142	LG	1
143	W	1
148	G	1
149	LA-R	1
150	LA-L	1
151	BR	1
155	R	1
157	V	1
158	L	1
159	BE	1
160	P	1

Connector No.	A-81
Connector Name	ETACS-ECU
Connector Type	NS06FWCS
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
127	W	1
128	V	1

Connector No.	A-82
Connector Name	ETACS-ECU
Connector Type	TH12FWNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
137	LA-Y	1
139	L	1
140	BE	1
141	LA-SB	1
142	BR	1 [Color of wire varies depending on production]
142	LG	1 [Color of wire varies depending on production]

Connector No.	A-83
Connector Name	FRONT FOG LIGHT (LH)
Connector Type	RH02FB
Connector Color	Black

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	W	+
2	B	GND

Connector No.	A-90
Connector Name	FRONT FOG LIGHT (RH)
Connector Type	RH02FB
Connector Color	Black

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	Y	+
2	B	GND

Connector No.	C-04
Connector Name	BCM (BODY CONTROL MODULE)
Connector Type	TH40FGYNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	LA-GR	1
7	LA-V	1
8	G	1
10	Y	1
11	V	1
13	LA-Y	1
14	W	1
17	W	1
21	LA-LG	1
24	BR	1
25	BE	1 [Color of wire varies depending on production]
25	Y	1 [Color of wire varies depending on production]
26	LA-L	1
27	LA-P	1
28	R	1
29	BR	1
30	Y	1
32	GR	1
33	BE	1
34	LG	1
37	Y	1
40	LA-BR	1

Connector No.	C-05
Connector Name	BCM (BODY CONTROL MODULE)
Connector Type	TH40FBNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
41	B	1
45	L	1
46	P	1
48	SB	1
49	BR	1
50	Y	1
51	V	1
52	BE	1
53	GR	1
63	LA-SB	1
67	V	1
68	W	1
69	G	1
70	P	1
71	LG	1
72	L	1
78	G	1
79	V	1

Connector No.	C-12
Connector Name	ETACS-ECU
Connector Type	TH40FWNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
31	LA-G	1
32	G	1
34	LA-BR	1
36	LA-G	1
37	LA-L	1
38	R	1
39	LA-Y	1
40	Y	1
41	LA-BR	1
42	GR	1
43	LG	1
46	LA-SB	1
47	Y	1
49	BE	1
50	GR	1
51	LA-V	1
52	LA-GR	1
53	G	1
54	LA-P	1
61	LA-GR	1
62	LA-P	1
66	LG	1

Connector No.	C-29
Connector Name	S-AWC DRIVE MODE SELECTOR
Connector Type	TH08FGYNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	B	1
2	BE	1
4	Y	1
5	B	1

Connector No.	C-45
Connector Name	COLUMN SWITCH
Connector Type	TH16FGYNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	LG	1
2	SB	1
3	P	1
4	BE	1
5	G	1
6	W	1
7	Y	1
8	V	1
10	BR	1
12	L	1
13	V	1
15	GR	1

Connector No.	C-46
Connector Name	CLOCK SPRING
Connector Type	TH16FBNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	BR	1
2	LA-R	1
3	LA-B	1
8	R	1
9	G	1
10	L	1
11	GR	1
12	B	1
13	BE	1
14	G	1
15	B	1
16	LA-L	1

Connector No.	C-51
Connector Name	AUTO LIGHT SYSTEM
Connector Type	TK03FW
Connector Color	White

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	BR	1
2	G	1
3	R	1

Connector No.	C-68
Connector Name	HAZARD WARNING LIGHT SWITCH
Connector Type	TH04FWNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	B	1
2	LA-Y	1
3	B	1
4	G	1

Connector No.	D-06
Connector Name	BCM (BODY CONTROL MODULE)
Connector Type	NS16FBRCS
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
121	V	1
124	LA-R	1
126	B	1
127	GR	1
128	G	1
129	Y	1
130	L	1
131	G	1
133	W	1
135	V	1
136	LA-Y	1

Connector No.	D-07
Connector Name	BCM (BODY CONTROL MODULE)
Connector Type	NS16FGYCSCPA
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
105	B	1
106	LA-Y	1
108	LA-L	1
109	LA-Y	1
110	LA-G	1
111	LA-P	1
112	LA-L	1
113	B	1
114	LG	1
115	LA-LG	1
118	V	1
120	LA-GR	1

Connector No.	D-08
Connector Name	BCM (BODY CONTROL MODULE)
Connector Type	TH24FGYNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
81	SB	1
83	LA-GR	1
86	LA-R	1
87	LA-L	1
93	GR	1
94	R	1
96	BE	1
98	Y	1
103	LA-G	1

Connector No.	D-14
Connector Name	ETACS-ECU
Connector Type	NS10FWCS
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
93	LA-W	1
94	LA-L	1
96	W	1
98	Y	1
99	LG	1
100	LA-G	1

Connector No.	D-15
Connector Name	ETACS-ECU
Connector Type	TH08FWNH
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
103	SB	1
105	LA-Y	1
107	LA-L	1
108	BR	1
109	LA-G	1

Connector No.	D-16
Connector Name	ETACS-ECU
Connector Type	NS12FWCS
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
111	L	1
112	GR	1
113	R	1
115	V	1
116	LA-GR	1
117	LA-P	1
118	LA-Y	1
119	LA-LG	1

Connector No.	D-72
Connector Name	FUEL GAUGE UNIT (SUB) <AWD>
Connector Type	DH094F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
3	G	1
4	Y	1

Connector No.	D-74
Connector Name	REAR COMBINATION LIGHT (TURN:RH)
Connector Type	DH4F1
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	R	1
2	W	1
3	B	1
4	V	1

Connector No.	D-75
Connector Name	CARGO ROOM LIGHT
Connector Type	DH093F2
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	P	1
3	BE	1

Connector No.	D-87
Connector Name	REAR COMBINATION LIGHT (TURN:LH)
Connector Type	DH4F1
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	R	1
2	Y	1
3	B	1
4	GR	1

Connector No.	F-11
Connector Name	FRONT DOOR LOCK ASSEMBLY LH
Connector Type	DH0910F2
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
5	G	DRUL
6	V	LHL
8	Y	IKDS
9	SB	DRSW
10	B	GND

Connector No.	F-29
Connector Name	FRONT DOOR LOCK ASSEMBLY RH
Connector Type	DH0910F2
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
5	SB	GND
6	GR	SW
9	Y	UNLC
10	V	LOCK

Connector No.	F-108
Connector Name	REAR DOOR LOCK ASSEMBLY LH
Connector Type	DH0910F2
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
4	BR	RRSL
5	V	GND
6	G	DSW
9	L	DSW
10	R	GND

Connector No.	G-14
Connector Name	REAR WIPER MOTOR
Connector Type	DH3F
Connector Color	-

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Color Of Wire	Signal Name [Specification]
1	GR	B
2	G	P
3	B	E
