Switch Name And Function

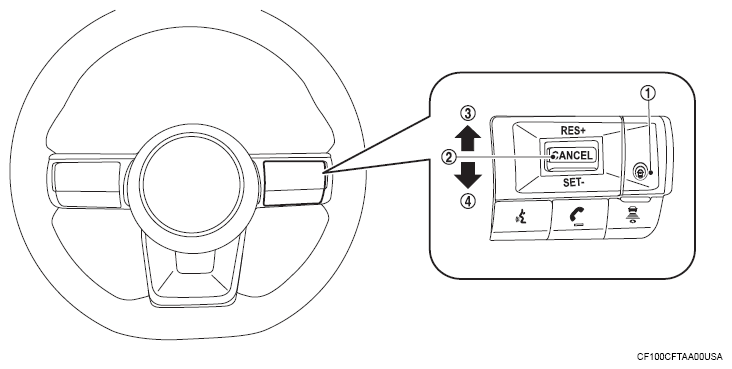

G16045669Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
No. Description Function
(1) MI-PILOT Assist MAIN switch Master switch to activate the system (Press for more than 1.5 seconds)
(3) CANCEL switch Deactivates system without erasing set speed
(3) RES+ switch Resumes set speed or increases speed incrementally
(4) SET- switch Sets desired cruise speed or reduces speed incrementally

SYSTEM DISPLAY AND WARNING

G16045670Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
No. Description Function
(1) Cruise indicator Indicates the condition of the conventional (fixed speed) cruise control mode of the MI-PILOT Assist system depending on a color
(2) Set vehicle speed indicator Indicates the set vehicle speed

SYSTEM CONTROL CONDITION DISPLAY

Push and hold the MI-PILOT Assist MAIN switch for longer than approximately 1.5 seconds. This mode will be in a standby state for setting.

Condition Display on information display
Standby mode Cruise indicator: Gray
Set vehicle speed indicator: -
G16045671Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Control mode Cruise indicator: Green
Set vehicle speed indicator: Green
G16045672Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

WARNING AND AUTOMATIC CANCELLATION DISPLAY

Condition Description Display on information display
  • When ASC (including the TCS) operates
  • When a wheel slips
  • The control is automatically canceled
  • A chime sounds
NOTE:
  • The system will be in a standby, after the control is automatically canceled
  • A chime sounds when the control is automatically canceled, except when brake pedal is depressed or when CANCEL switch is pressed
 Not Available:
Poor Road
Conditions
  • When the ASC is turned OFF
  • When the SNOW mode or OFF-ROAD mode is selected (4WD models)
 A chime sounds and the control is automatically canceled.
NOTE: When the condition is no longer present, turn the system OFF. Turn the MI-PILOT Assist system back on to use the system.
 Currently not available
Parking brake is applied A chime sounds and the control is automatically canceled.
NOTE: After releasing the parking brake, turn the system OFF. Turn the MI-PILOT Assist system back on to use the system.
 Not Available
Parking Brake On
When the MI-PILOT Assist system is malfunctioning
  • The control is automatically canceled
  • A chime sounds
NOTE: Turn the engine OFF and restart engine. If there is no malfunction, it is possible to set the system
 Not Available
System Malfunction
