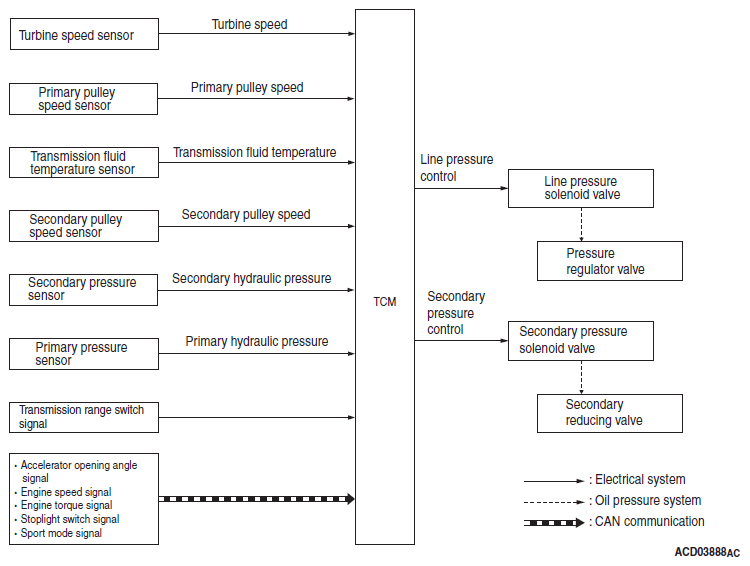

Line Pressure Control And Secondary Pressure Control

G12147153Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The high-precision line pressure control and secondary pressure control have reduced the friction for better fuel economy.
