Purge Control System Check (Purge Flow Check)
>>
Removal And Installation
Removal And Installation
Pre-removal and Post-installation Operation
Rear Wheelhouse Splash Shield (LH) Removal and Installation (Refer to , Splash Shield
INSTALLATION SERVICE POINT
).

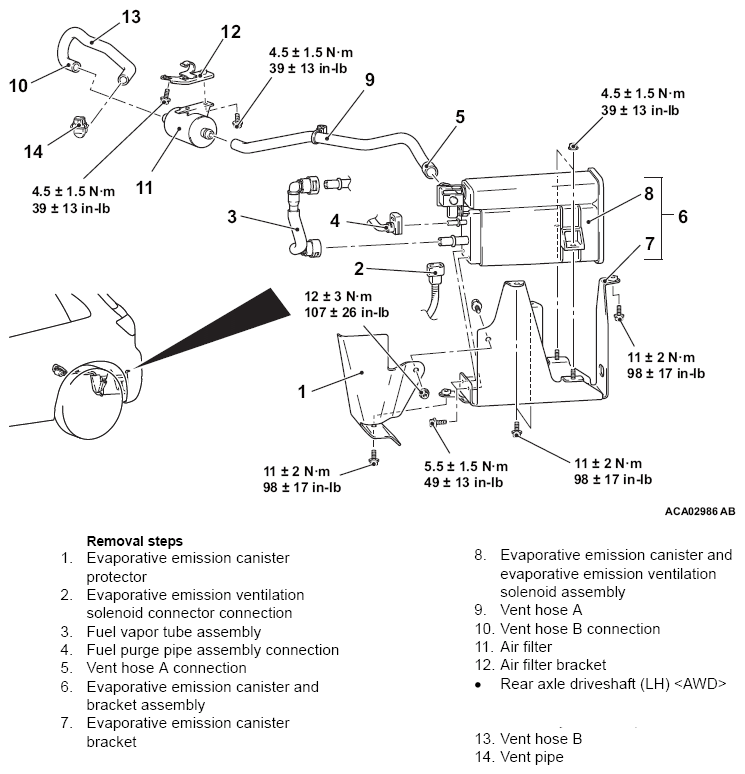

Fig 1: Removing/Installing Evaporative Emission Canister And Fuel Tank Pressure Relief Valve Components Location With Torque Specification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
