Error In Diagnostic Procedure For P0780 CVT Shift Control System (TT-265-23-001)
Publication date: 2021-11-01Reference number: TT-265-23-001
ERROR IN DIAGNOSTIC PROCEDURE FOR P0780 CVT SHIFT CONTROL SYSTEM
TECHNICAL SERVICE BULLETIN
Reference Number(s): TT-265-23-001, Date of Issue:
November 01, 2021
| MITSUBISHI: | 2022 OUTLANDER |
SERVICE INFORMATION
The following article was published in a recent Tech Talk publication and states:
AFFECTED VEHICLES: 2022 Outlander
PURPOSE

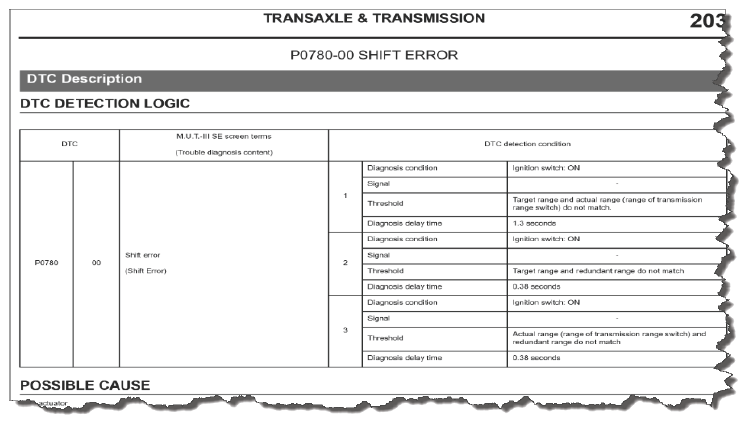

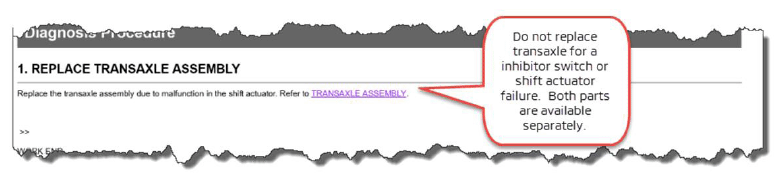

When diagnosing a CVT shifter concern related to the shift actuator or for code P0780 the last step indicates incorrectly that a possible cause may be the shift actuator and that if confirmed the transaxle should be replaced. If diagnostics lead to a shift actuator DO NOT REPLACE THE CVT TRANSAXLE. The shift actuator and inhibitor switch are both available as separate parts and should be replaced independently of the transaxle.
| Shift Actuator | 2615A043 |
| Inhibitor Switch | 8617B127 |
TRANSAXLE & TRANSMISSION
NOTE:
Replacements of the transaxle assembly where replacement of just the inhibitor switch or shift actuator would have repaired the vehicle, are subject to claim denial. Please follow all Warranty Policy and Procedure steps when submitting claims.
