System Display
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|

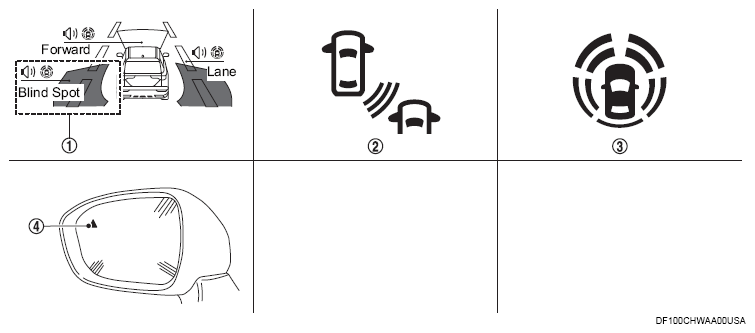

| No. |
Switch name |
Description |
| (1) |
Active Blind Spot Assist [ABSA] indicator |
Indicates that Active Blind Spot Assist [ABSA] is ON |
| (2) |
Active Blind Spot Assist [ABSA] indicator |
- Blinks when Active Blind Spot Assist [ABSA] is warning to driver
- Indicates that an abnormal condition is present in Active Blind Spot Assist [ABSA]
|
| (3) |
Active Blind Spot Assist [ABSA] ON indicator |
Indicate that Active Blind Spot Assist [ABSA] is ON |
| (4) |
Blind Spot Warning/Active Blind Spot Assist [ABSA] indicator LH/RH |
Illuminates when detect other vehicles beside vehicle in an adjacent lane |
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
| No. |
Switch name |
Description |
| (1) |
Active Blind Spot Assist [ABSA] indicator |
Indicates that Active Blind Spot Assist [ABSA] is ON |
| (2) |
Active Blind Spot Assist [ABSA] indicator |
- Blinks when Active Blind Spot Assist [ABSA] is warning to driver
- Indicates that an abnormal condition is present in Active Blind Spot Assist [ABSA]
|
| (3) |
Blind Spot Warning/Active Blind Spot Assist [ABSA] indicator LH/RH |
Illuminates when detect other vehicles beside vehicle in an adjacent lane |
