Exploded View
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

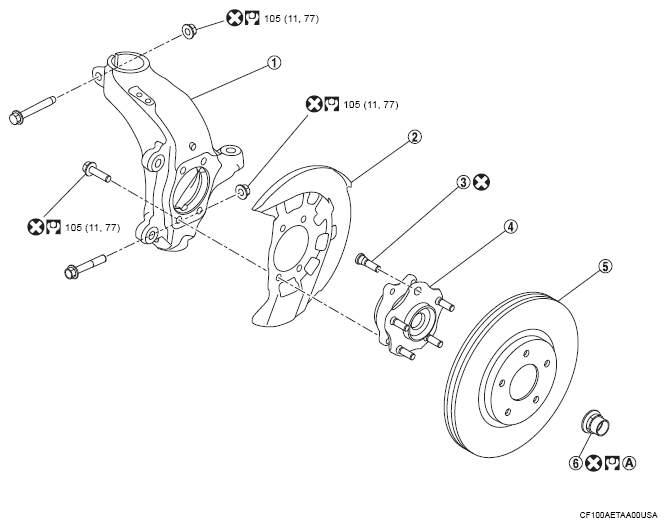

Fig 1: Removing/Installing Front Wheel Hub And Knuckle Components Location With Torque Specification (2WD)
| (1) | Steering knuckle |
| (2) | Splash guard |
| (3) | Hub bolt |
| (4) | Wheel hub and bearing assembly |
| (5) | Disc rotor |
| (6) | Wheel hub lock nut |
| (A) | : Comply with the installation procedure when tightening . Refer to REMOVAL AND INSTALLATION . |
| : N.m (kg-m, ft-lb) | |
| : Always replace after every disassembly . |
Fig 1: Removing/Installing Front Wheel Hub And Knuckle Components Location With Torque Specification (AWD)
| (1) | Steering knuckle |
| (2) | Splash guard |
| (3) | Hub bolt |
| (4) | Wheel hub and bearing assembly |
| (5) | Disc rotor |
| (6) | Wheel hub lock nut |
| (A) | : Comply with the installation procedure when tightening . Refer to REMOVAL AND INSTALLATION . |
| : N.m (kg-m, ft-lb) | |
| : Always replace after every disassembly . |
