Left Side
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

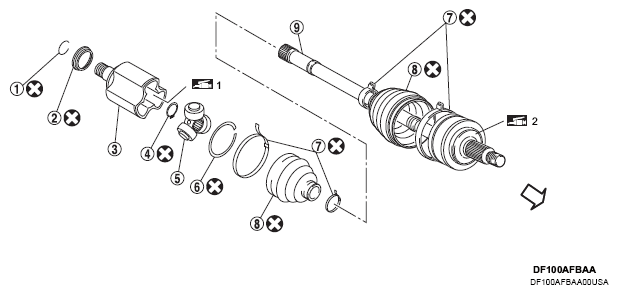

| (1) | Circular clip |
| (2) | Dust shield |
| (3) | Housing |
| (4) | Snap ring |
| (5) | Spider assembly |
| (6) | Stopper ring |
| (7) | Boot band |
| (8) | Boot |
| (9) | Drive shaft |
| : Wheel side | |
| 1: Fill Mitsubishi Genuine grease or equivalent . | |
| 2: Apply paste [service parts (440037S000)] | |
| : Always replace after every disassembly |
