Exploded View: Disassembly
WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

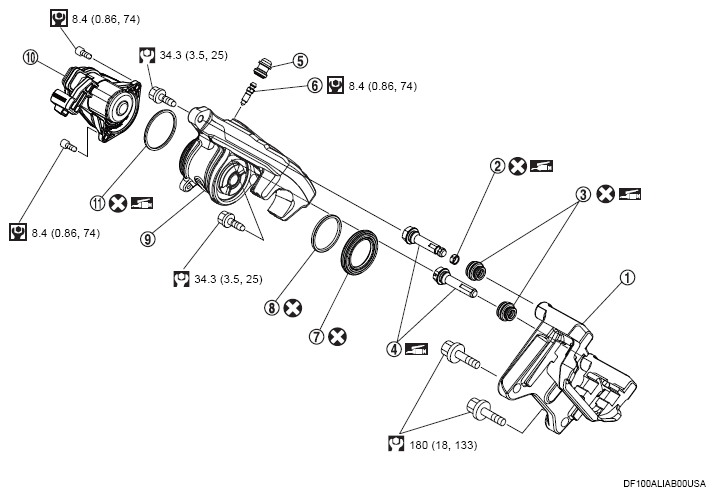

Fig 1: Disassembling/Assembling Brake Caliper Assembly Components Location With Torque Specification
| (1) | Torque member |
| (2) | Bushing |
| (3) | Sliding pin boot |
| (4) | Sliding pin |
| (5) | Cap |
| (6) | Bleeder valve |
| (7) | Piston boot |
| (8) | Piston seal |
| (9) | Cylinder body |
| (10) | Parking brake actuator |
| (11) | O-ring |
| : Apply rubber grease. | |
| : Always replace after every disassembly. | |
