Exploded View

WARNING: This page is about a different car, the 2024 Mitsubishi Outlander. However, it is still accessible from the selected car via links, so may be relevant.

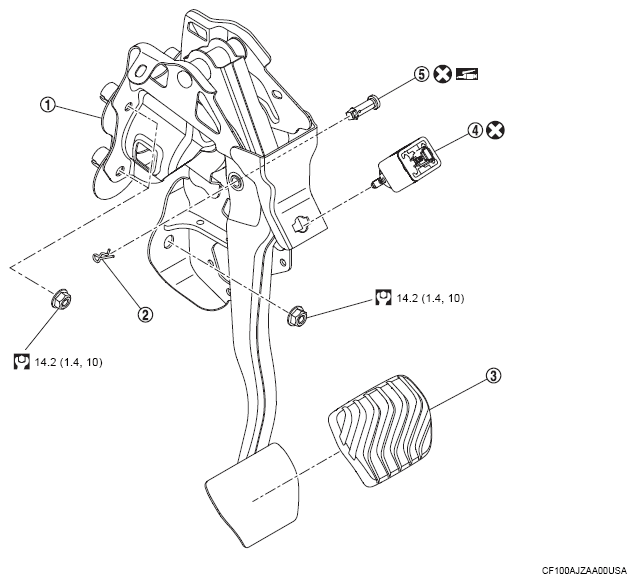

Fig 1: Removing/Installing Brake Pedal Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

(1)	Brake pedal assembly
(2)	Snap pin
(3)	Brake pedal pad
(4)	Stop light switch
(5)	Clevis pin
	: N.m (kg-m, ft-lb)
	: Apply multi-purpose grease.
	: Always replace after every disassembly.
