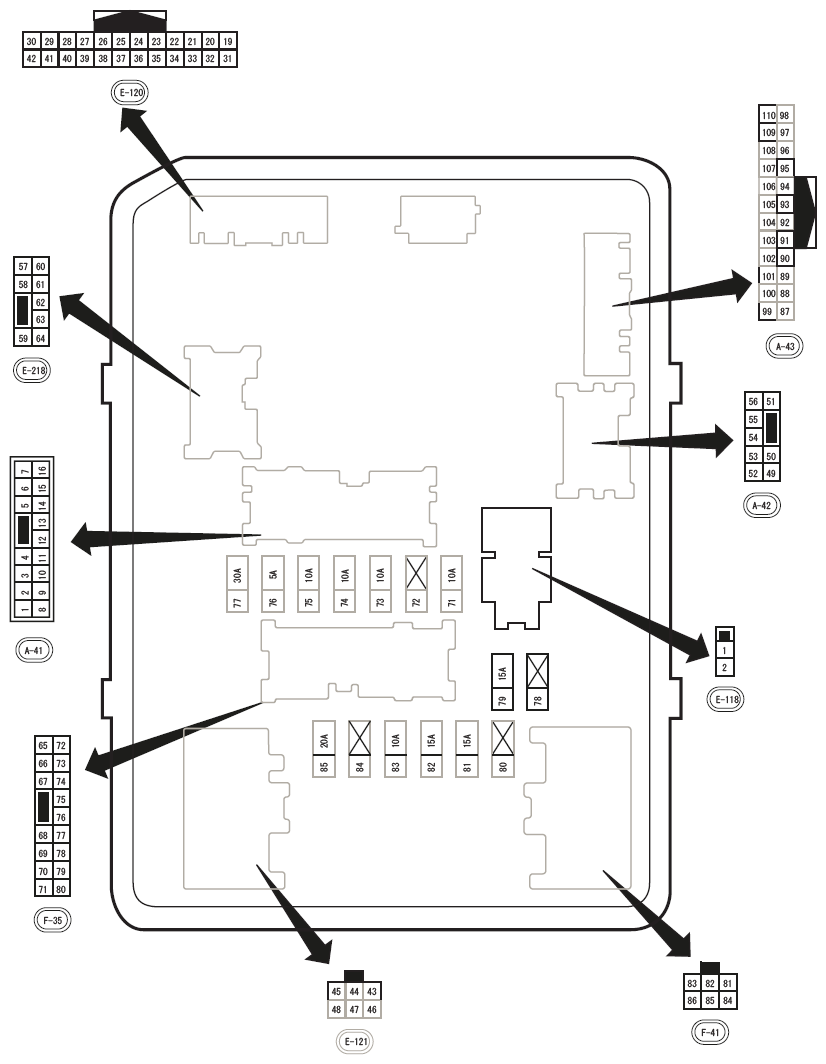

Fuse, Connector and Terminal Arrangement

G16052996Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Be sure to read connector number substitution list when using connector numbers for servicing. (Refer to CONFIGURATION DIAGRAMS - connector number substitution list)
