Home >> Mitsubishi >> 2021 >> Mirage SE >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Starting System >> Starting System >> System Diagram

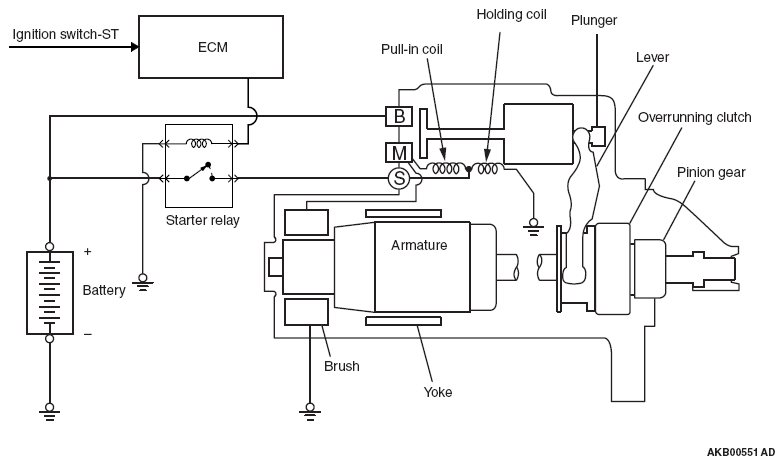

System Diagram

G09628811

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
