«B» Engine Assembly Supporting

  1. <When engine hanger special tool (MB991928) is used>
    1. Assemble the engine hanger special tools (MB991928, MB991932 and MB991929) and slide bracket (HI) (Set the components below to the base hanger).
      • Slide bracket (HI)
      • Foot x 4 (standard) (MB991932)
      • Joint x 2 (50) (MB991929)

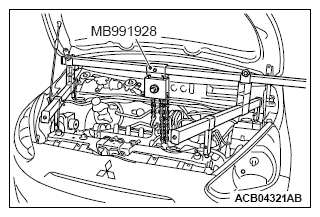

    2. Set the special tools MB991928, MB991932 and MB991929 as shown in the illustration.
      NOTE: Adjust the engine hanger balance.
    3. Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.
    G08296376Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    G11278092Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. <When engine hanger special tool (MB991895) and engine hanger attachment special tool (MB992906) are used>

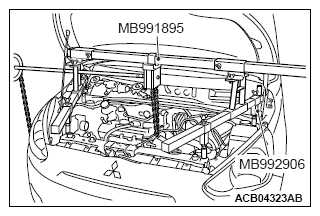

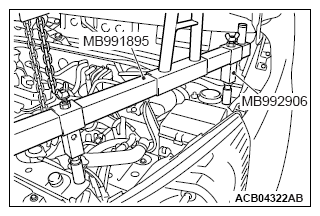

  1. Set the special tools MB991895 and MB992906 as shown in the illustration.
    NOTE: Adjust the engine hanger balance.
  2. Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.
G11278093Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
G11278094Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
