<2.4L ENGINE (Except for Mexico)>

NOTE: The voltage cannot be measured because the ECM uses waterproof connectors. This is only a list of references.

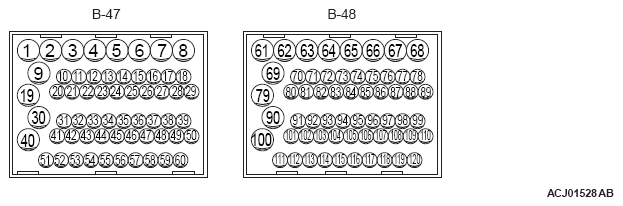

ECM Connector Terminal Arrangement

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Terminal No.	Terminal code	Check item	Check condition		Normal condition
70	BRK	Stoplight switch (brake switch)	Ignition switch: "ON"	Depress the brake pedal.	Battery positive voltage
70	BRK	Stoplight switch (brake switch)	Ignition switch: "ON"	Release the brake pedal.	1V or less
74	CNTS	Cruise control switches power supply	Ignition switch: "ON"	All switches: Released.	4.7 - 5.0 V
				Cruise control ON/OFF switch: Pressed.	0.9 - 1.7 V
				CANCEL switch: Pressed.	1.9 - 2.7 V
				SET - switch: Pressed.	2.9 - 3.6 V
				RES + switch: Pressed.	3.8 - 4.5 V
