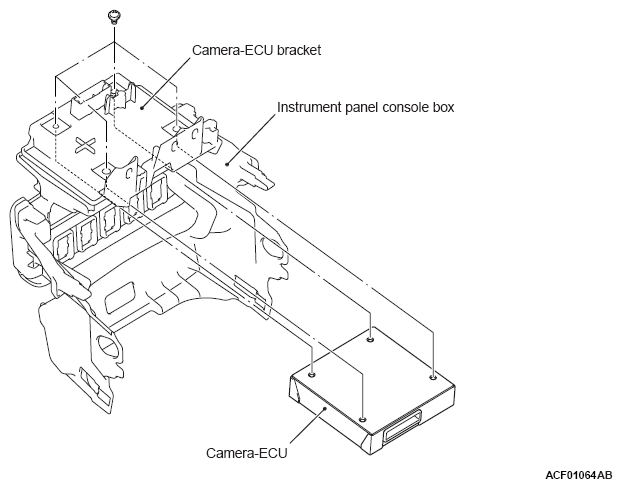

Camera-Ecu Removal And Installation: Notes

CAUTION:

When you replace the camera-ECU, you should teach the camera-ECU for the multi-around monitor by writing a learned value. On completion, you should check the camera image on the multi around monitor "Bird's eye-view." If necessary, calibrate the camera (Refer to CALIBRATION ).
To ensure the camera image is clearly visible, wipe the lens with a damped rag and then a dry rag to remove dust, rain drops or snow.
Be careful not to damage the camera. Any damage may have an adverse effect on the screen image.
Pre-removal and post-installation operation
- Instrument Panel Lower Center Removal and Installation (Refer to INSTRUMENT PANEL ASSEMBLY ).
- Multivision Display Assembly Removal and Installation (Refer to SMARTPHONE LINK DISPLAY AUDIO ).
