Home >> Mitsubishi >> 2019 >> Eclipse Cross SP >> Repair and Diagnosis >> Engine Performance >> Wiring Diagrams >> Circuit Diagrams >> Spotlight

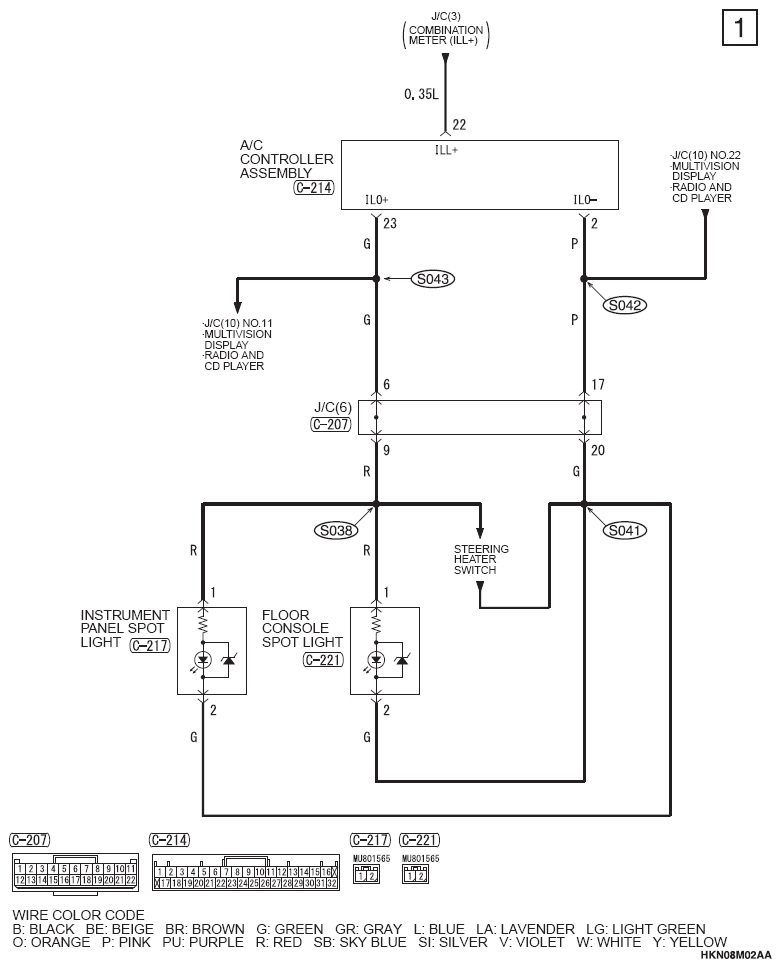

Circuit Diagrams: Spotlight

G12651460

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
