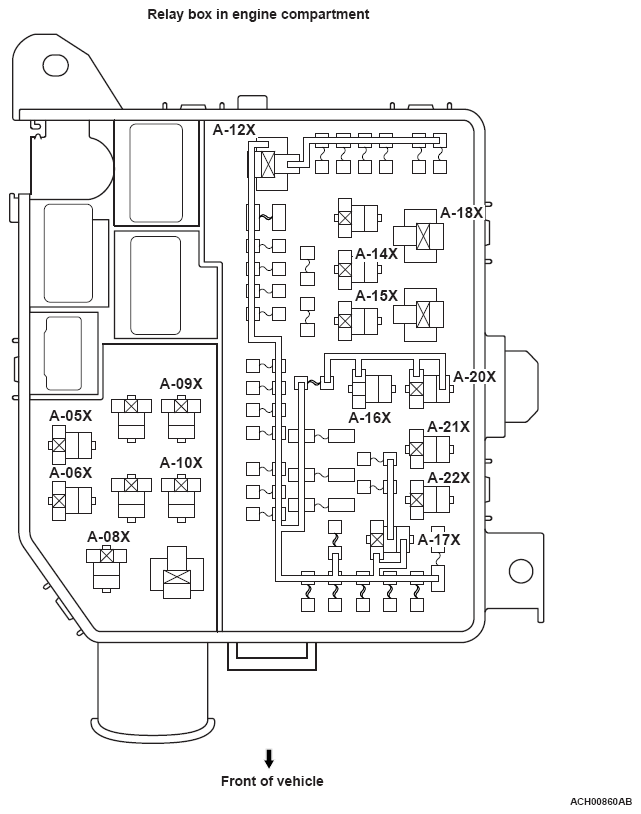

Centralized Relay
| Connector No. | Name |
|---|---|
| A-05X | Daytime running light relay |
| A-06X | Front fog light relay |
| A-08X | Theft-alarm horn relay |
| A-09X | Heated seat relay |
| A-10X | Throttle actuator control motor relay |
| A-12X | MFI relay |
| A-14X | Starter relay |
| A-15X | Steering heater relay |
| A-16X | Fan control relay |
| A-17X | Headlight relay (HI) |
| A-18X | Radiator fan relay |
| A-20X | Condenser fan relay |
| A-21X | Horn relay |
| A-22X | A/C compressor relay |
