Home >> Mitsubishi >> 2019 >> Eclipse Cross SE >> Repair and Diagnosis >> Body & Frame >> Seats >> Interior >> Front Seat Assembly >> Front Seat Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

CAUTION: Before removing and installing the front seat assembly, refer to "SERVICE PRECAUTIONS " and SIDE-AIRBAG MODULE .

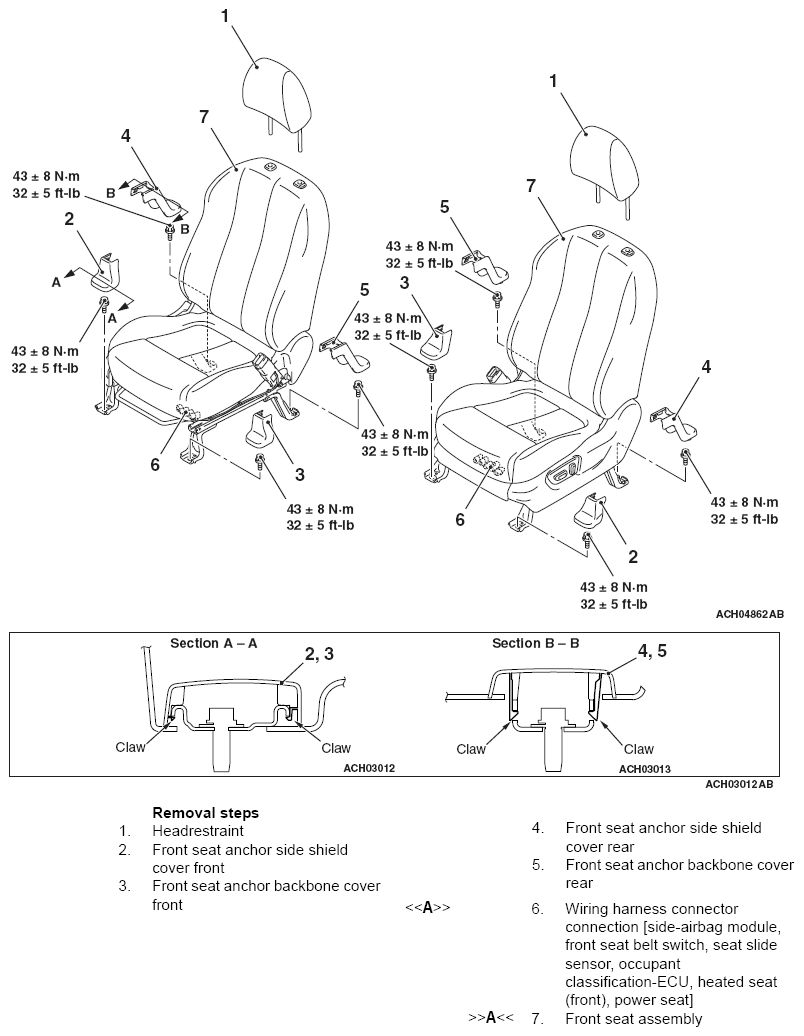

Fig 1: Removing/Installing Front Seat Assembly Components With Torque Specification
G12649859Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
