>>B<< Hub Bolt Installation

WARNING: This page is about a different car, the 2017 Mitsubishi Mirage. However, it is still accessible from the selected car via links, so may be relevant.

After fixing the hub using the special tool MB990767, install the plain washer to the new hub bolt, and tighten the bolt with a nut.

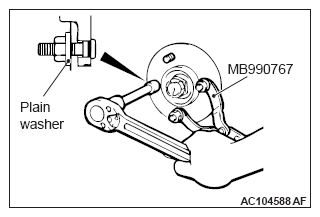

Fig 1: Installing Plain Washer To Hub Bolt
G11278435Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
