Front Seat Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes
CAUTION:
Before removing and installing the front seat assembly, refer to
SERVICE PRECAUTIONS

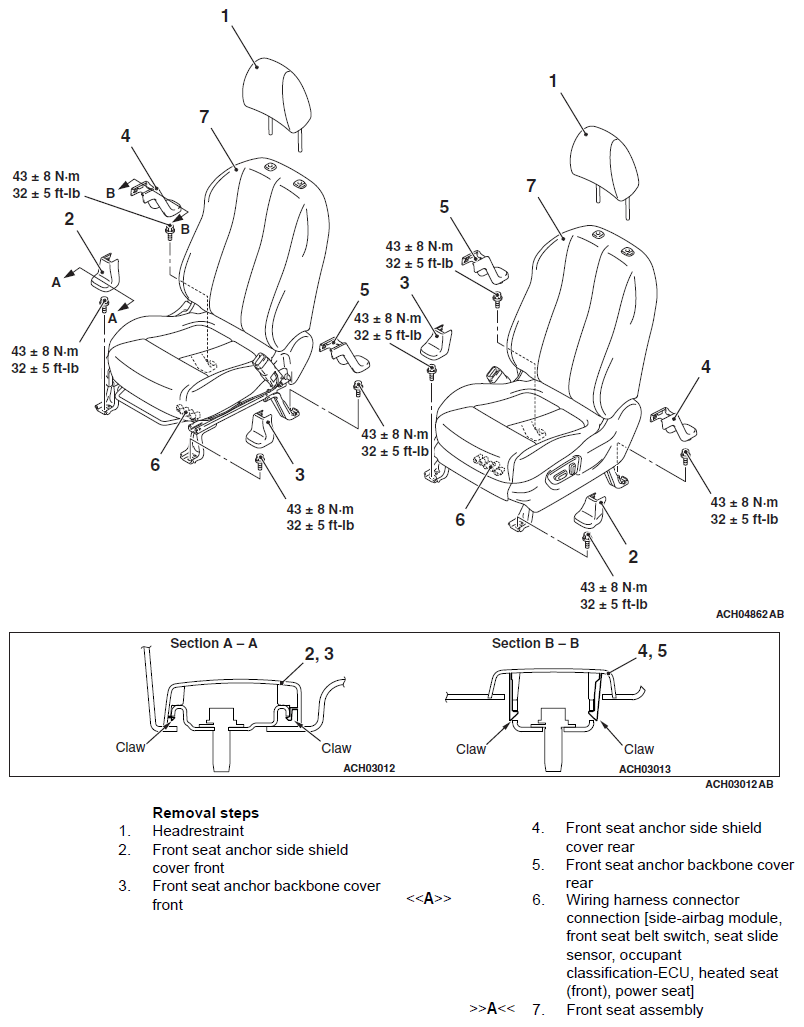

Fig 1: Front Seat Assembly Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
