Snap Ring Installation

Select a snap ring that allows distance of the thrust crevice of synchronizer hub No. 2 to fall within the standard value range.

Standard value: 0 - 0.1 mm (0 - 0.0039 inch)

NOTE: Try on snap rings in the decreasing order of thickness, and install the first one that fits into the input shaft.

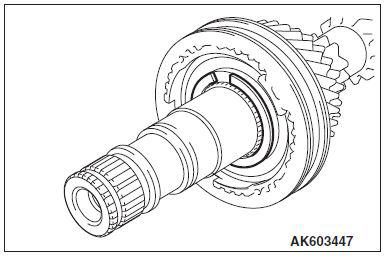

Fig 1: Installing Snap Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Select a snap ring that allows distance of the thrust crevice of radial ball bearing to fall within the standard value range.

Standard value: 0 - 0.1 mm (0 - 0.0039 inch)

NOTE: Try on snap rings in the decreasing order of thickness, and install the first one that fits into the input shaft.

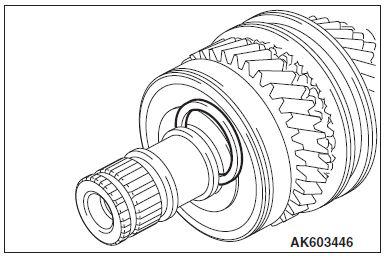

Fig 1: Installing Snap Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
