BELLCRANK Disassembly And Assembly: Notes

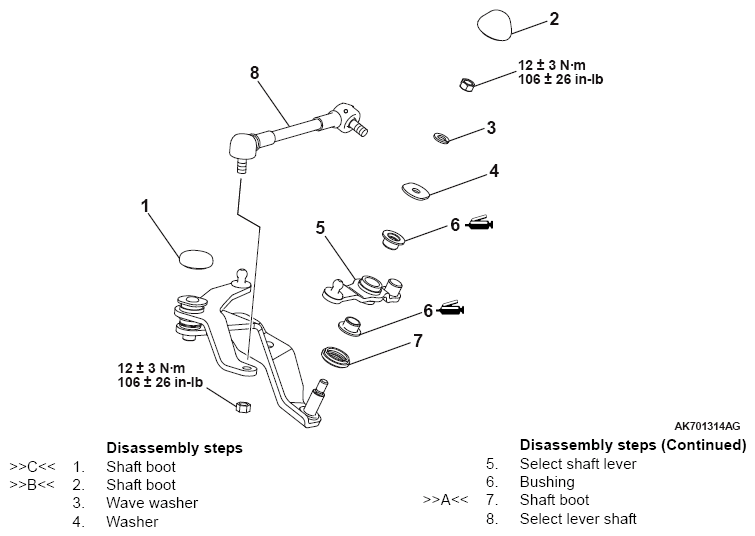

Fig 1: Disassembling/Assembling Bell Crank Components With Torque Specifications

G10229929

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
