>>B<< Dust Shield Installation

Use special tools MB991388 and MB991576 to press-fit the knuckle into the dust shield.

NOTE: Use the bolts (M12) to align the caliper mounting holes.

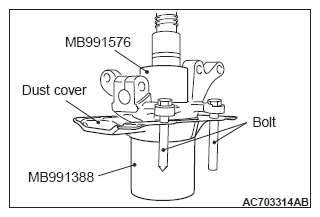

Fig 1: Pressing Knuckle Into Dust Shield
G12120160Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
