Screen transition

Screen transition will progress in accordance with the camera switch signal, which radio and CD player <vehicles with display audio> or multivision display <vehicles with smartphone link display audio or MMCS> receives from the camera switch, your operation of the camera switch, which is integrated in the inside rear view mirror assembly <vehicles with out display audio, smartphone link display audio and MMCS>, OFF request signal (by display audio, smartphone link display audio or MMCS), the selector lever operation and vehicle speed signal as follows:

Fig 1: Camera Switch Signal Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The vehicle speed is less than 10 km/h (6.2 mph).

<Vehicles without display audio, smartphone link display audio and MMCS>

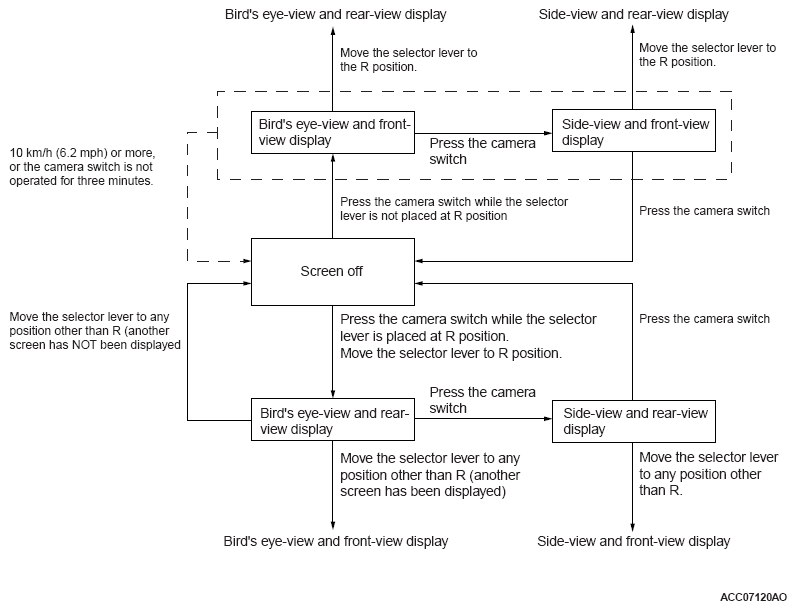

Fig 2: Screen Transition Flow Diagram - Vehicles Without Display Audio, Smartphone Link Display Audio And MMCS

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

The vehicle speed is less than 10 km/h (6.2 mph).

<Vehicles with display audio, smartphone link display audio or MMCS>

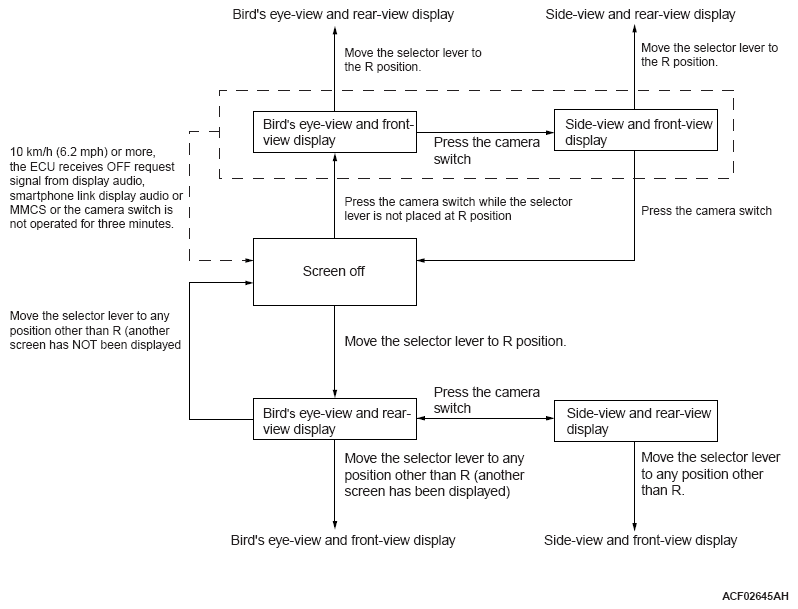

Fig 3: Screen Transition Flow Diagram - Vehicles With Display Audio, Smartphone Link Display Audio Or MMCS

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
