Removal And Installation: Notes

Pre-removal and post-installation operation
  • Rear pillar trim and Rear shelf trim removal and installation (Refer to - INTERIOR TRIM ).
Fig 1: Rear Window Glass Stoppers
G11467055Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

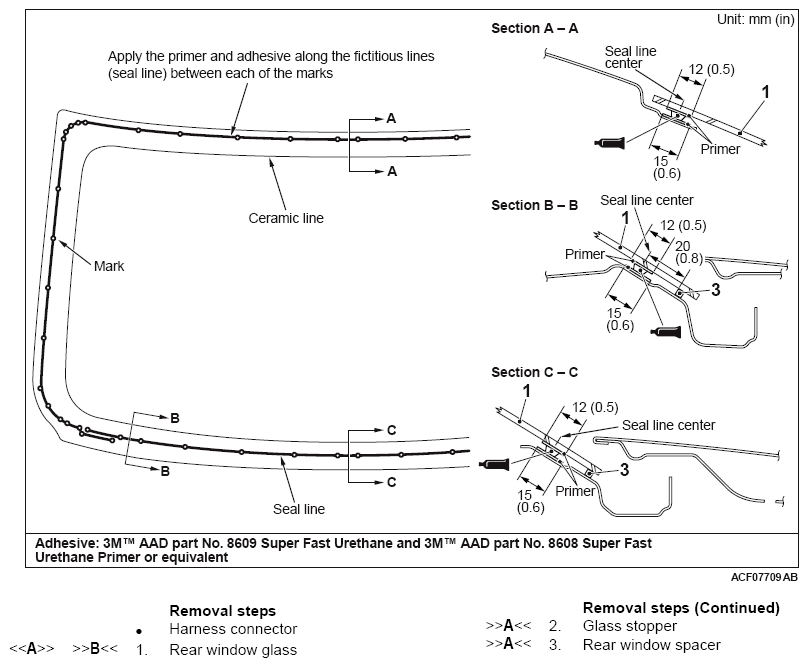

Fig 2: Applying Primer And Adhesive Along Fictitious Lines (Seal Line) Between Marks
G11467056Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
