Transfer Oil (Check Oil Level And Condition/Change): Notes

1. Remove the filler plug and gasket.
   Fig 1: Locating Filler Plug And Drain Plug

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Check that the oil level is not 18 mm (0.7 inch) below the bottom of the oil filler plug hole.
3. Check that the oil is not excessively foul and has moderate viscosity.
4. Install the filler plug and new gasket, then tighten them to the specified torque.

   Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

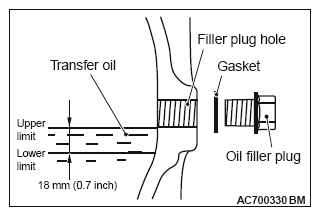

Fig 2: Checking Transfer Oil Level

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
