Removal And Installation: Notes

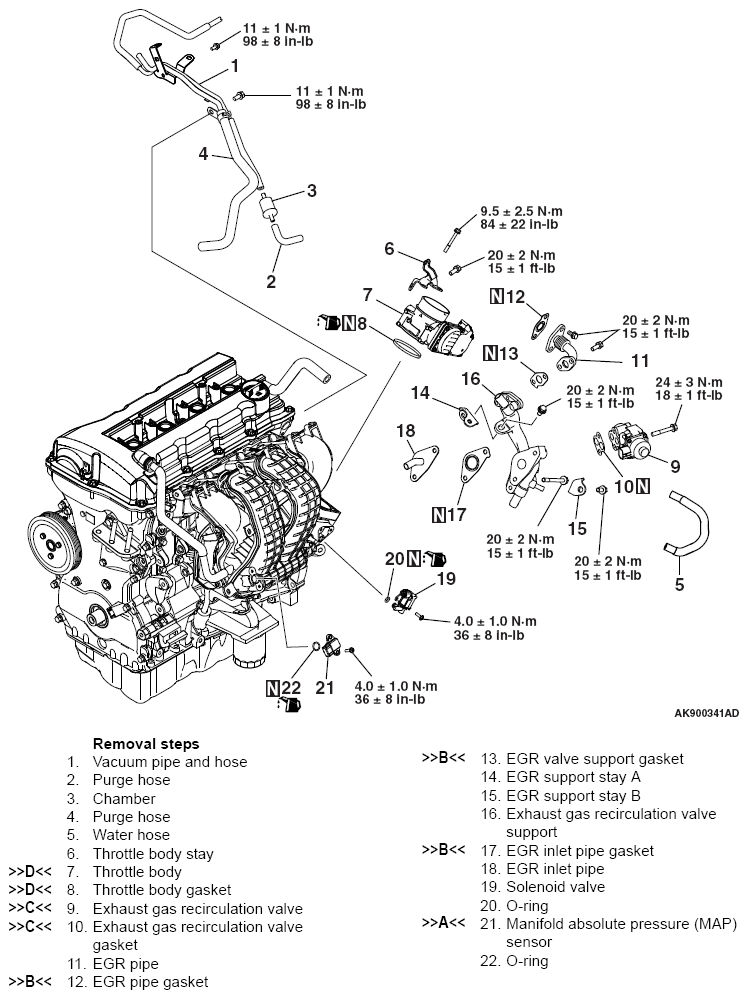

Fig 1: Throttle Body And EGR System Components With Torque Specifications
G09619790Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
