General Information
>>
Description Of Structure And Operation
>>
Sectional View
Sectional View

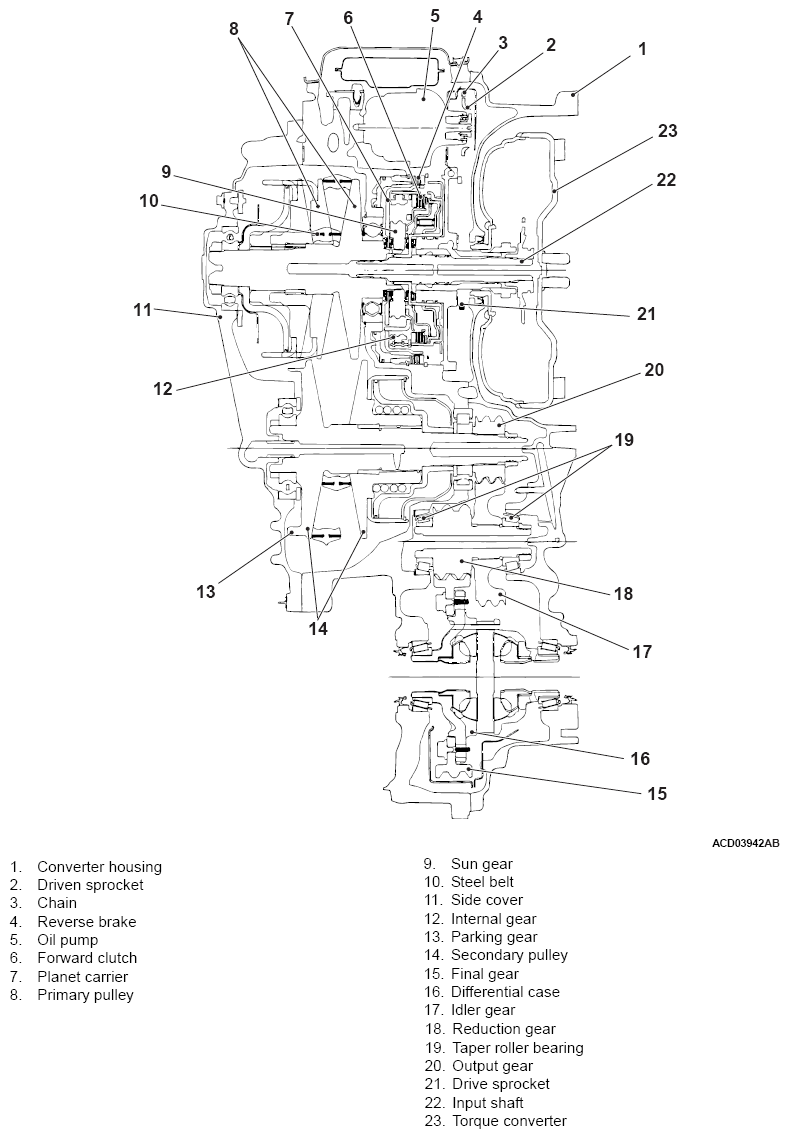

Fig 1: Sectional View Of CVT
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
