Procedure For Engine Overheating Message In Combination Meter - Service Manual Revision (TSB-17-54-001)

Publication date: 2017-01-01
Reference number: TSB-17-54-001

PROCEDURE FOR ENGINE OVERHEATING MESSAGE IN COMBINATION METER - SERVICE MANUAL REVISION

PROCEDURE FOR ENGINE OVERHEATING MESSAGE IN COMBINATION METER - SERVICE MANUAL REVISION

TECHNICAL SERVICE BULLETIN

Reference Number(s): TSB-17-54-001, Date of Issue:  January, 2017
MITSUBISHI: 2014-17 Outlander

PURPOSE

This TSB updates the Chassis Electrical section of the affected Service Manuals to correct a reference in the Combination Meter Check Procedure chart.

AFFECTED VEHICLES

AFFECTED SERVICE MANUALS

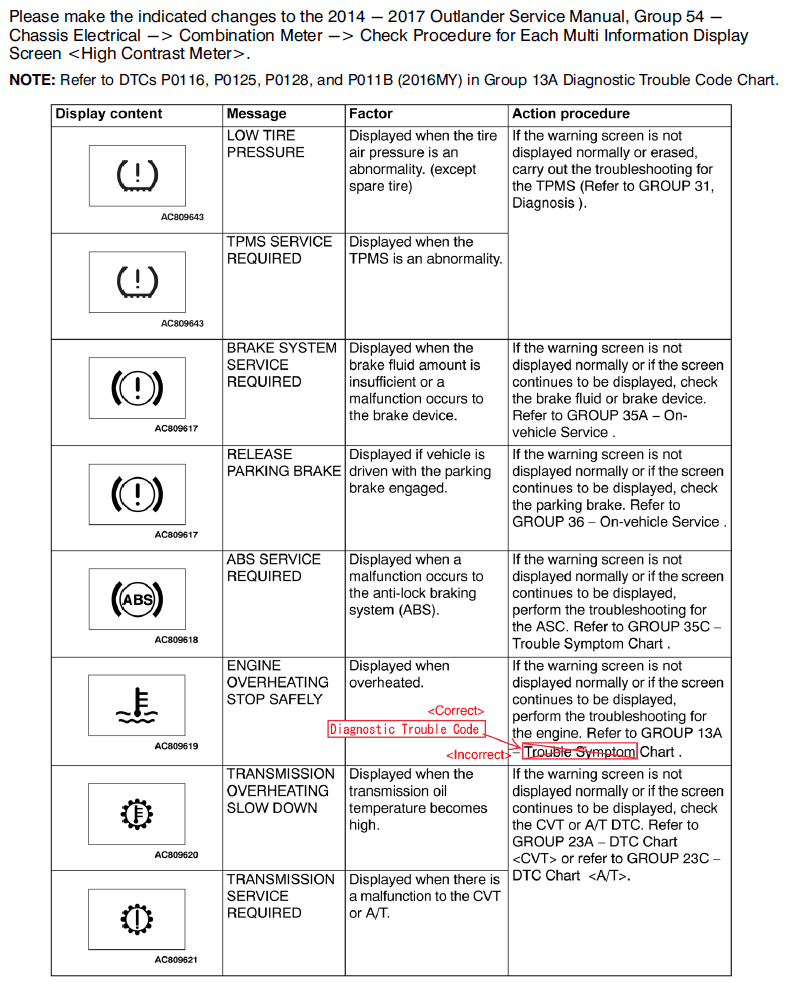

2014 - 2017 Outlander Service Manual, Group 54 - Chassis Electrical -> Combination Meter -> Check Procedure for Each Multi Information Display Screen <High Contrast Meter>

G11175228
