REMOVAL AND INSTALLATION (3.0 L Engine)

Pre-removal operation  Engine Room Side Cover (RH) Removal (Refer to REMOVAL AND INSTALLATION ). Driveshaft Assembly (RH) Removal < Vehicles with S-AWC > (Refer to DRIVESHAFT ASSEMBLY ).

Post-installation operation  Driveshaft Assembly (RH) Installation < Vehicles with S-AWC > (Refer to DRIVESHAFT ASSEMBLY ). Engine Room Side Cover (RH) Installation (Refer to REMOVAL AND INSTALLATION ).

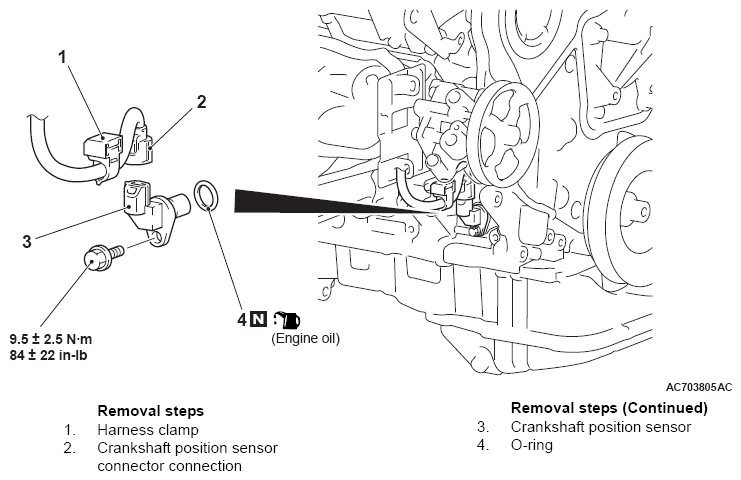

Fig 1: Removing/Installing Engine Electrical System Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
