Front Seat Assembly Installation

  1. Confirm that both the seat slides are locked, and then temporarily tighten all the bolts shown in the figure so that no load is applied to the front seat cushion.
  2. Tighten all the bolts to the specified torque.

    Tightening torque: 43 ± 8 N.m (32 ± 5 ft-lb)

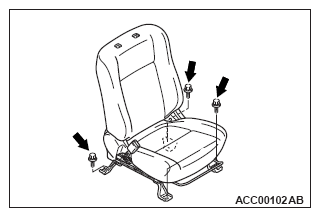

    Fig 1: Tightening Front Seat Assembly Bolts
    G10224986Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
