Initialization Procedure

Required Special Tools:

• MB992744: Vehicle communication interface-Lite (V.C.I.-Lite)
• MB992745: V.C.I.-Lite main harness A
• MB992747: V.C.I.-Lite USB cable short
• MB992748: V.C.I.-Lite USB cable long
• MB991958: Scan Tool (M.U.T.-III Sub Assembly)
  • MB991824: Vehicles Communication Interface (V.C.I.)
  • MB991827: M.U.T.-III USB Cable
  • MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

1. After the ignition switch is in "LOCK" (OFF) position, connect scan tool (M.U. T-III) to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "MFI" form System select Screen of scan tool (M.U.T.-III).
4. Select "Special Function" form MFI Screen.
5. Select "Learned value reset" from Special Function Screen.
6. Select "All learned value" form Learned value reset Screen.
7. Initialize the learning value by pressing the "ON" button.
8. After initializing the learning value, the learning value of MFI engine idling is necessary. (Refer to LEARNING PROCEDURE FOR IDLING IN MFI ENGINE  ).

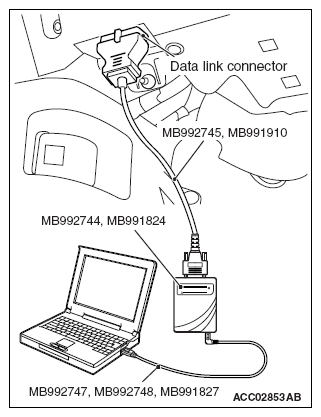

   Fig 1: Connecting M.U.T. III System To Data Link Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
