Special Tool

Tool Tool number and name Supersession Application

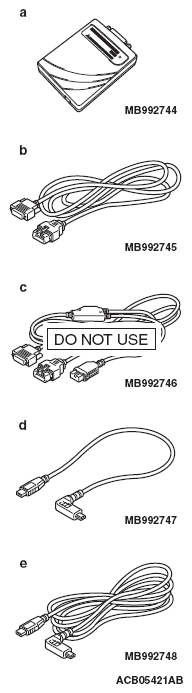

G09631778
  1. MB992744
  2. MB992745
  3. MB992746
  4. MB992747
  5. MB992748
  1. Vehicle communication interface-Lite (V.C.I.-Lite)
  2. V.C.I.-Lite main harness A (for vehicles with CAN communication)
  3. V.C.I.-Lite main harness B (for vehicles without CAN communication)
  4. V.C.I.-Lite USB cable short
  5. V.C.I.-Lite USB cable long
 - DTC, service data and actuator test check.

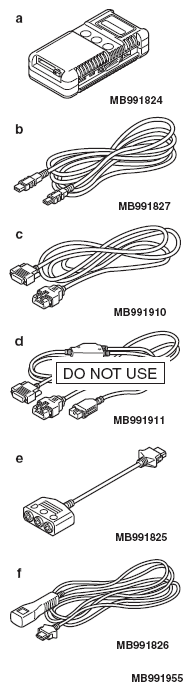

G09631779
 MB991955
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991825
  6. MB991826

M.U.T.-III sub-assembly
  1. Vehicle Communication Interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III measurement adapter
  6. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle.
ASC check (Diagnostic trouble code display, data list display and calibration by scan tool)
G09631780
 MB992006
Extra fine probe		 - Continuity check and voltage measurement at harness wire or connector for loose, corroded or damaged terminals, or terminals pushed back in the connector.
G09631781
 MB991709
Wiring harness set		 - Checking the ASC-ECU and output current measure at the wheel speed sensor
