<< B >> Spring Pin Removal

Knock the spring pin out of the 3rd-4th speed shift fork from the illustrated direction.

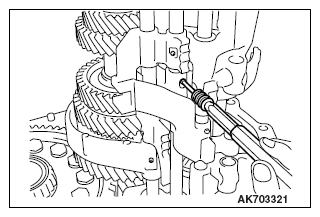

Fig 1: Removing Spring Pin Out Of 3rd-4th Speed Shift Fork
G09641227Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
