Home >> Mitsubishi >> 2015 >> Lancer Evolution Final Edition >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle Overhaul - Lancer Evolution >> Reverse Idler Gear >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

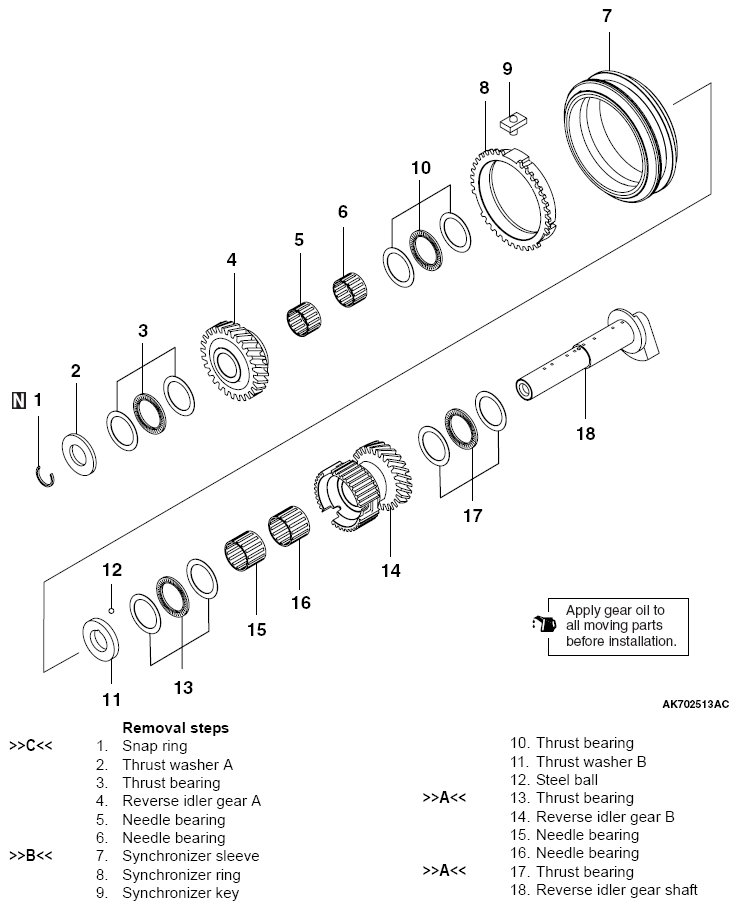

Fig 1: Disassembling/Assembling Reverse Idler Gear With Torque Specification

G09641296

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
