Transfer Oil Check

  1. Remove the engine room under cover front B assembly. (Refer to REMOVAL AND INSTALLATION .)
  2. Remove the filler plug and gasket.

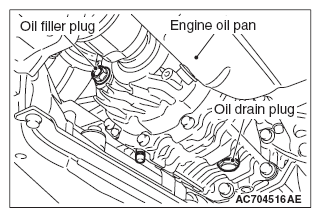

    Fig 1: Identifying Engine Oil Pan, Oil Filler Plug And Drain Plug
    G09641164Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Check that the oil level is not 14 mm (0.6 inch) below the bottom of the oil filler plug hole.
  4. Check that the oil is not excessively foul and has moderate viscosity.
  5. If the oil level is not in between the upper limit and the lower limit, refill the specified oil to the bottom of the oil filler plug hole.

    Brand name: Mitsubishi Motors Genuine LSD gear oil

  6. Install the filler plug and new gasket, then tighten them to the specified torque.

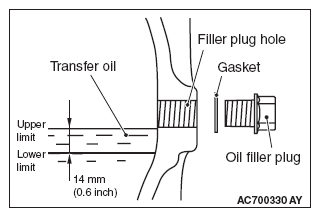

    Fig 2: Checking Transmission Oil Level
    G09641165Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

    Tightening torque: 32 ± 2 N.m (24 ± 1 ft-lb)

  7. Install the engine room under cover front B assembly. (Refer to REMOVAL AND INSTALLATION .)
